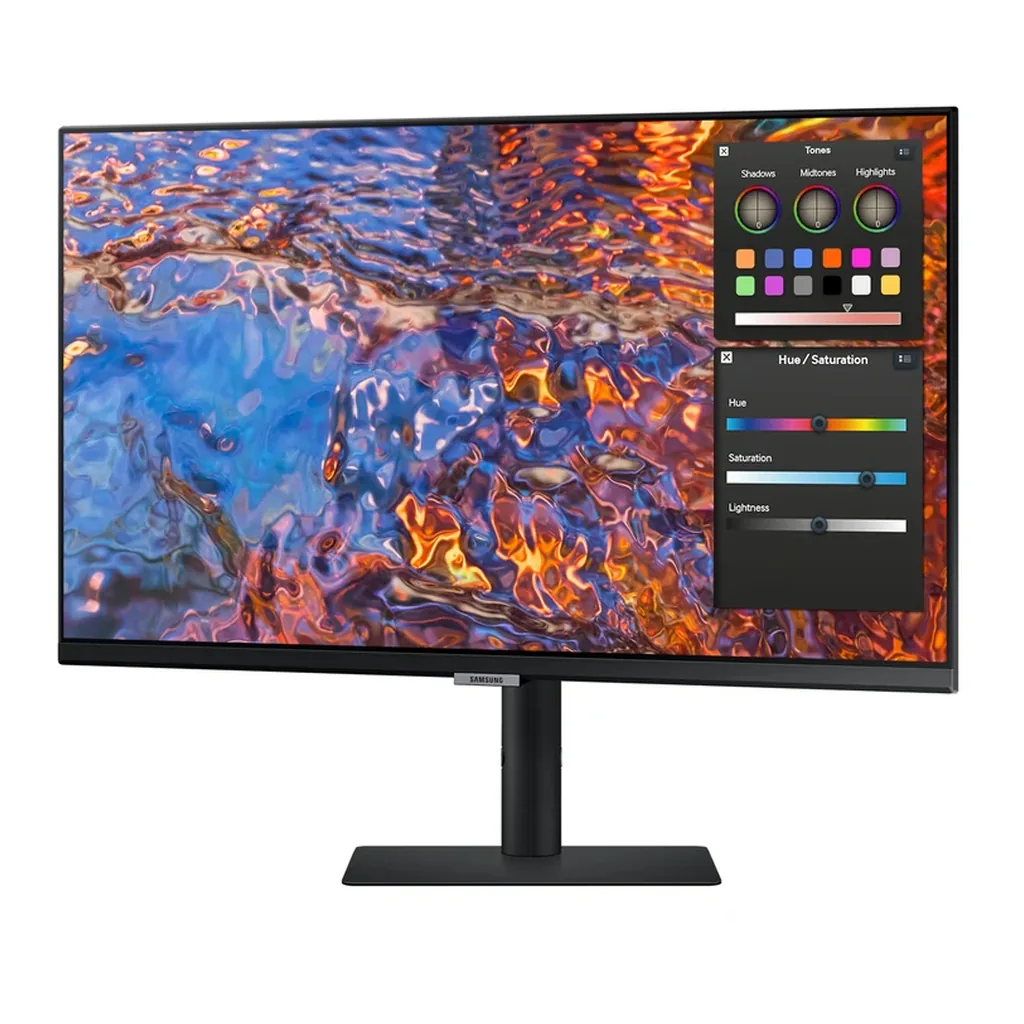

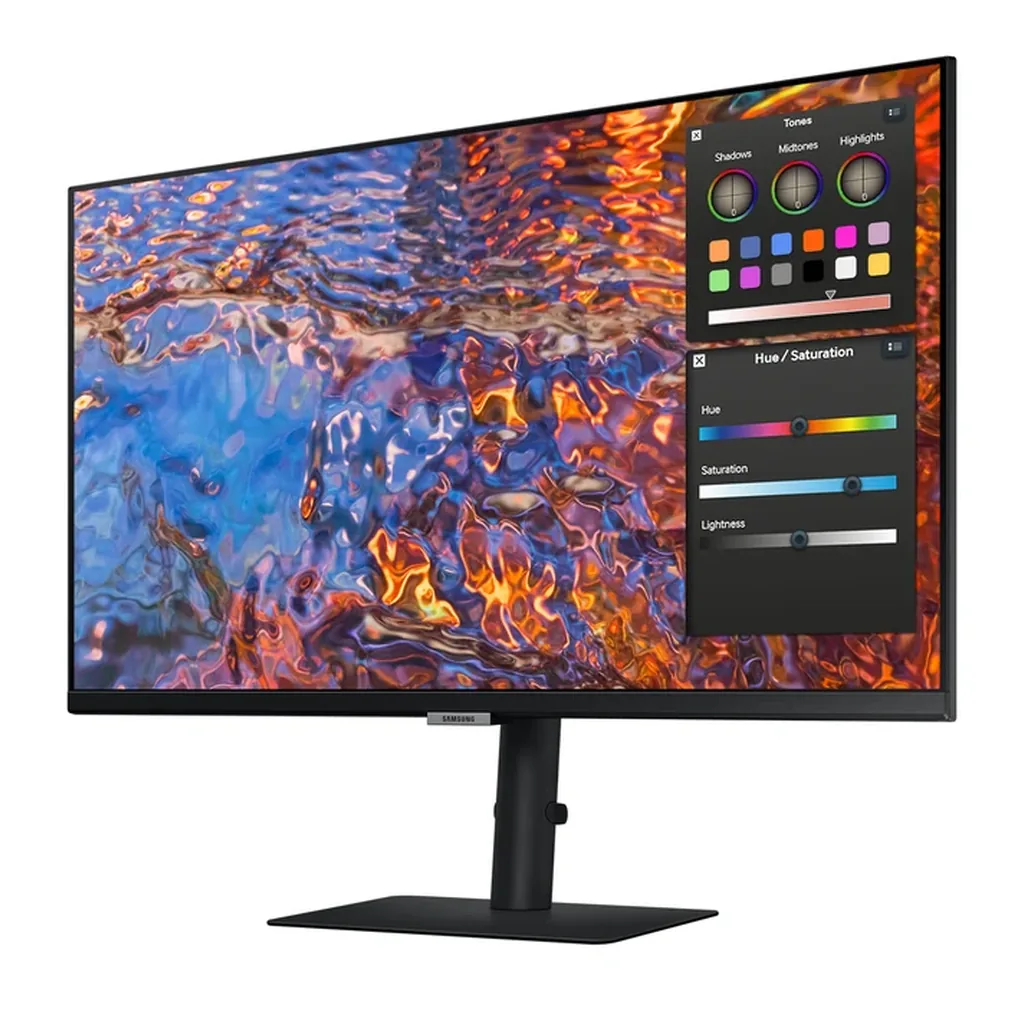

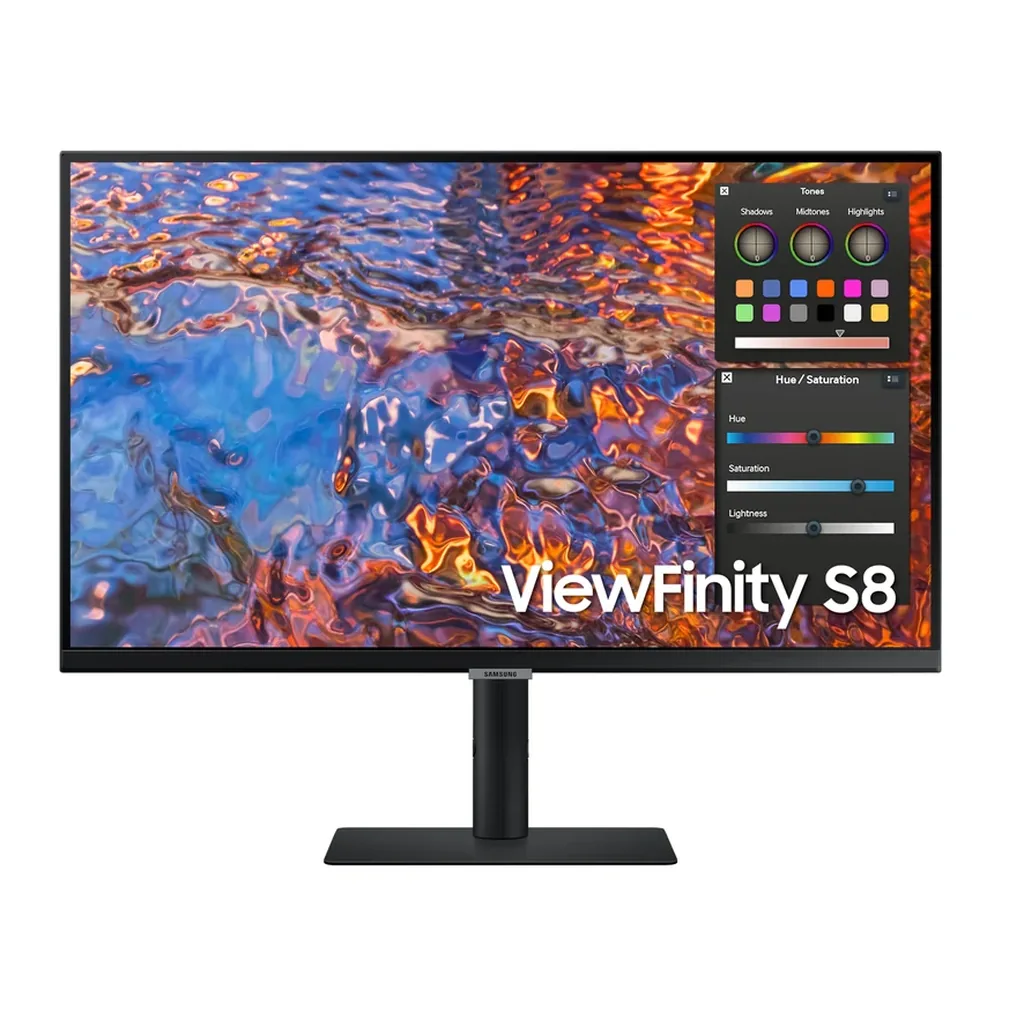

ViewFinity S8 S80PB for your desktop
The Samsung LS27B804PXNXGO pairs a 27-inch IPS panel with 4K (3,840 x 2,160) resolution and a refresh rate of max 60hz. Its 16:9 aspect ratio defines the workspace available on screen.
Picture and motion
- Brightness (Typical): 350 cd/㎡
- Brightness (Min): 320 cd/㎡
- Contrast Ratio Static: 1000:1(Typ)
- Contrast Ratio (Dynamic): Mega DCR
- HDR(High Dynamic Range): VESA DisplayHDR 400
- Response Time (ms): 5ms
- Color Gamut (DCI Coverage): 98% (Custom mode)
Maximum resolution and refresh rate depend on the connected device, cable, port and display settings. Response-time figures follow Samsung’s stated measurement method.
Display features
- Eco Saving Plus: Yes
- Eco Light Sensor: Yes
- Eye Saver Mode: Yes
- Flicker Free: Yes
- Picture-In-Picture: Yes
- Picture-By-Picture: Yes
- Game Mode: Yes
- Image Size: Yes
- Windows Certification: Windows10
- Off Timer Plus: Yes
- Auto Source Switch+: Yes
- Adaptive Picture: Yes

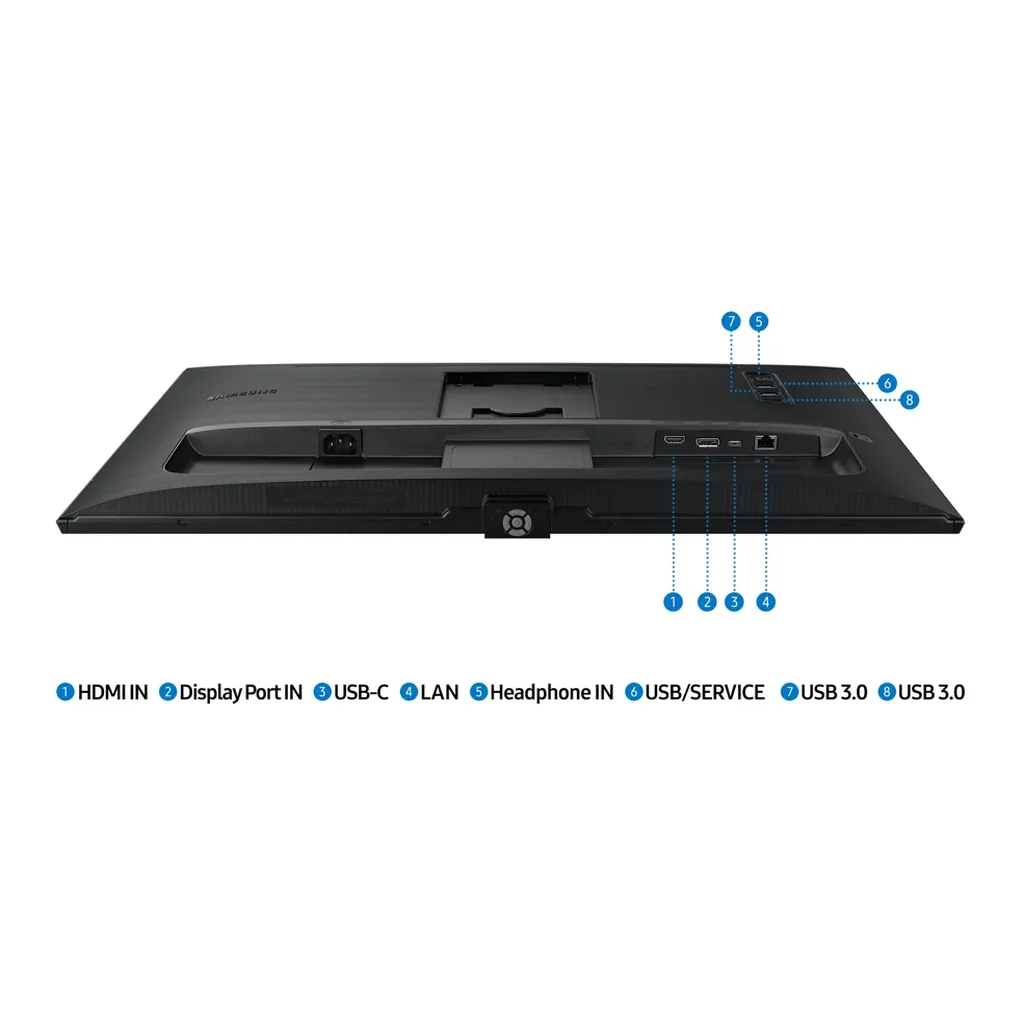

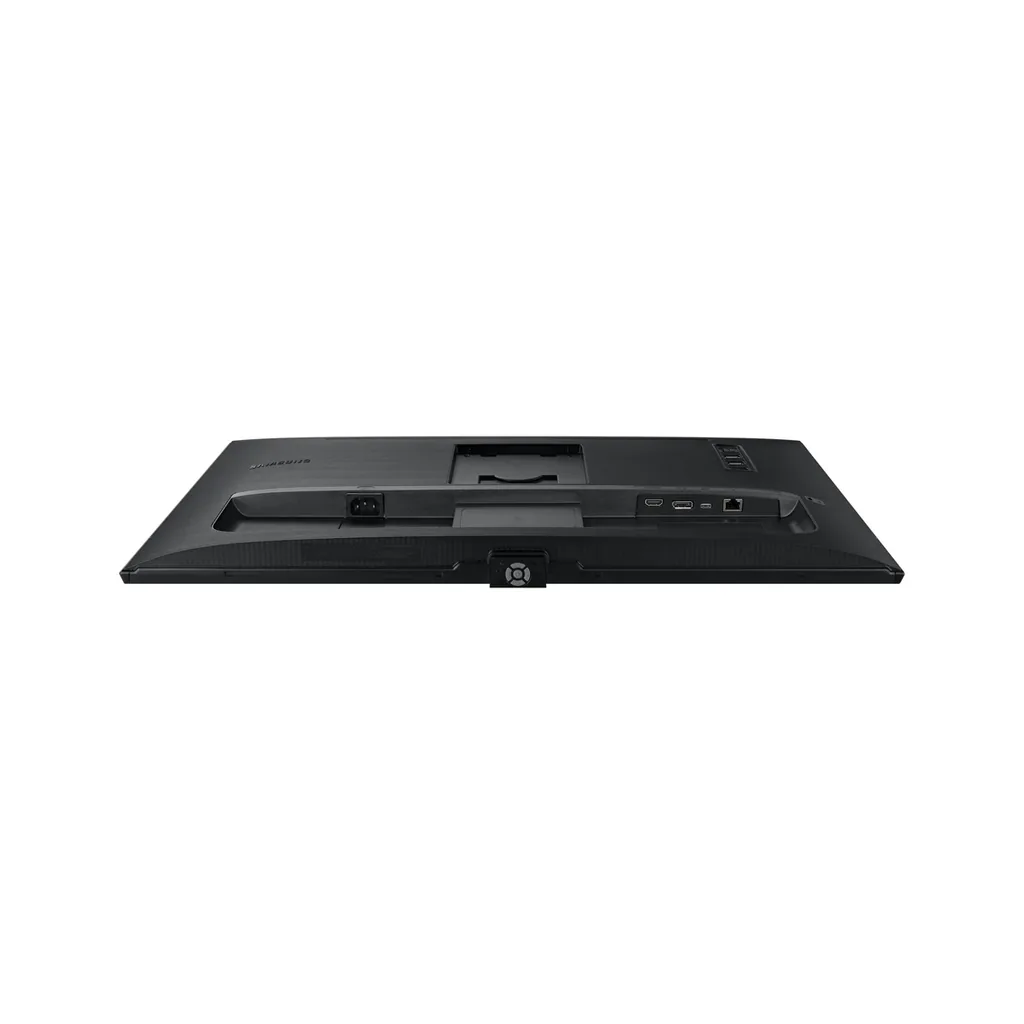

Connections and audio
- Display Port: 1 EA
- HDMI: 1 EA
- Headphone: Yes
- USB Ports: 3
- USB-C: 1 EA
- USB-C Charging Power: 90W
- Ethernet (LAN): 1 EA
- Speaker: No
Stand and installation
- Stand Type: HAS

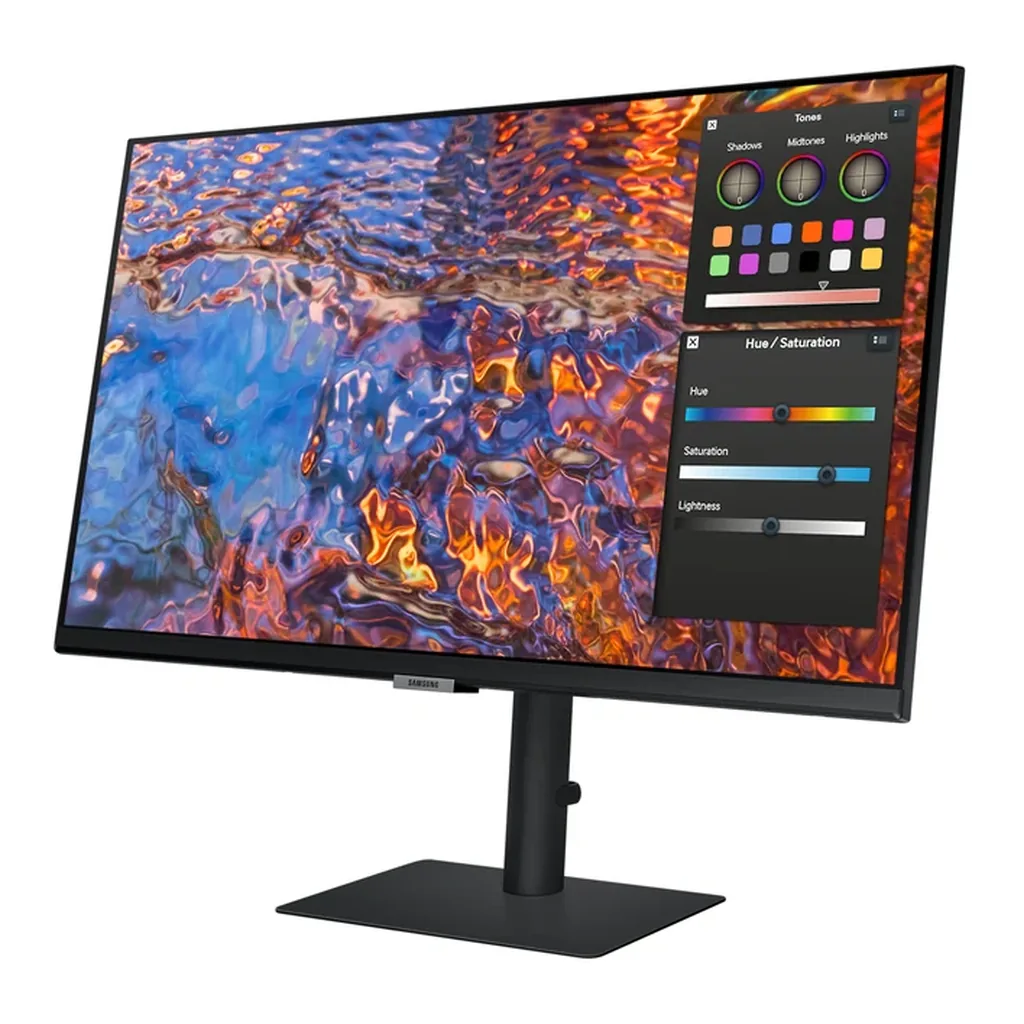

- HAS(Height Adjustable Stand): 120.0mm(±5.0mm)

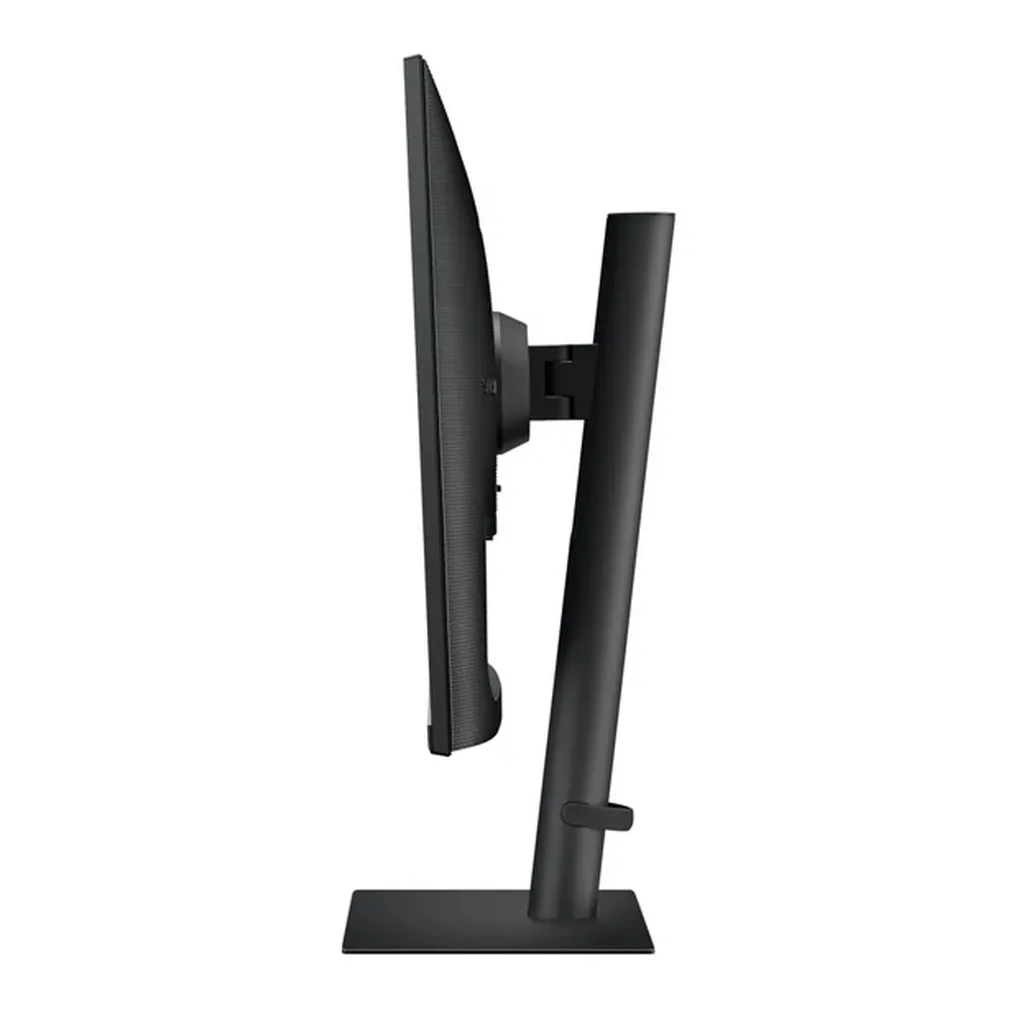

- Tilt: -2.0˚(±3.0˚)~25.0˚(±3.0˚)
- Swivel: -30.0˚(±3.0˚)~30.0˚(±3.0˚)

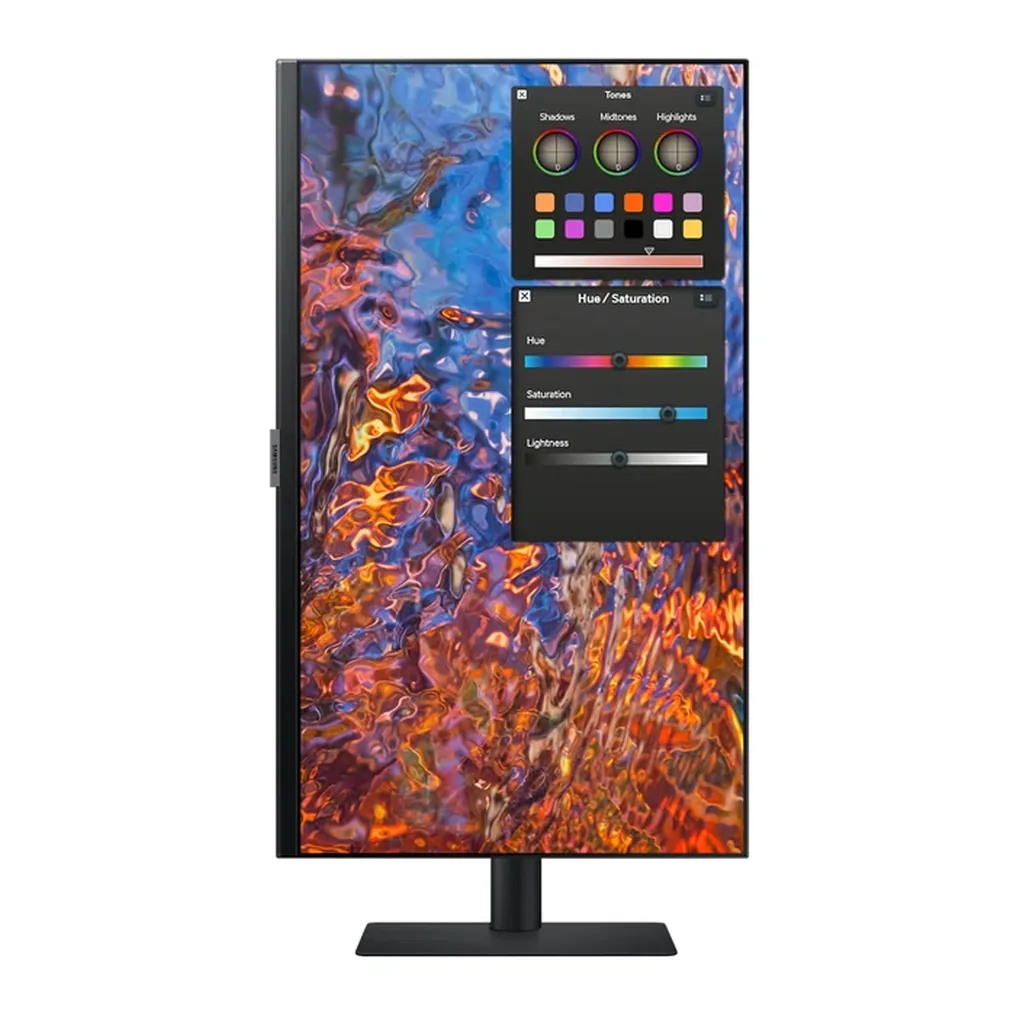

- Pivot: -2.0˚(±2.0˚)~92.0˚(±2.0˚)

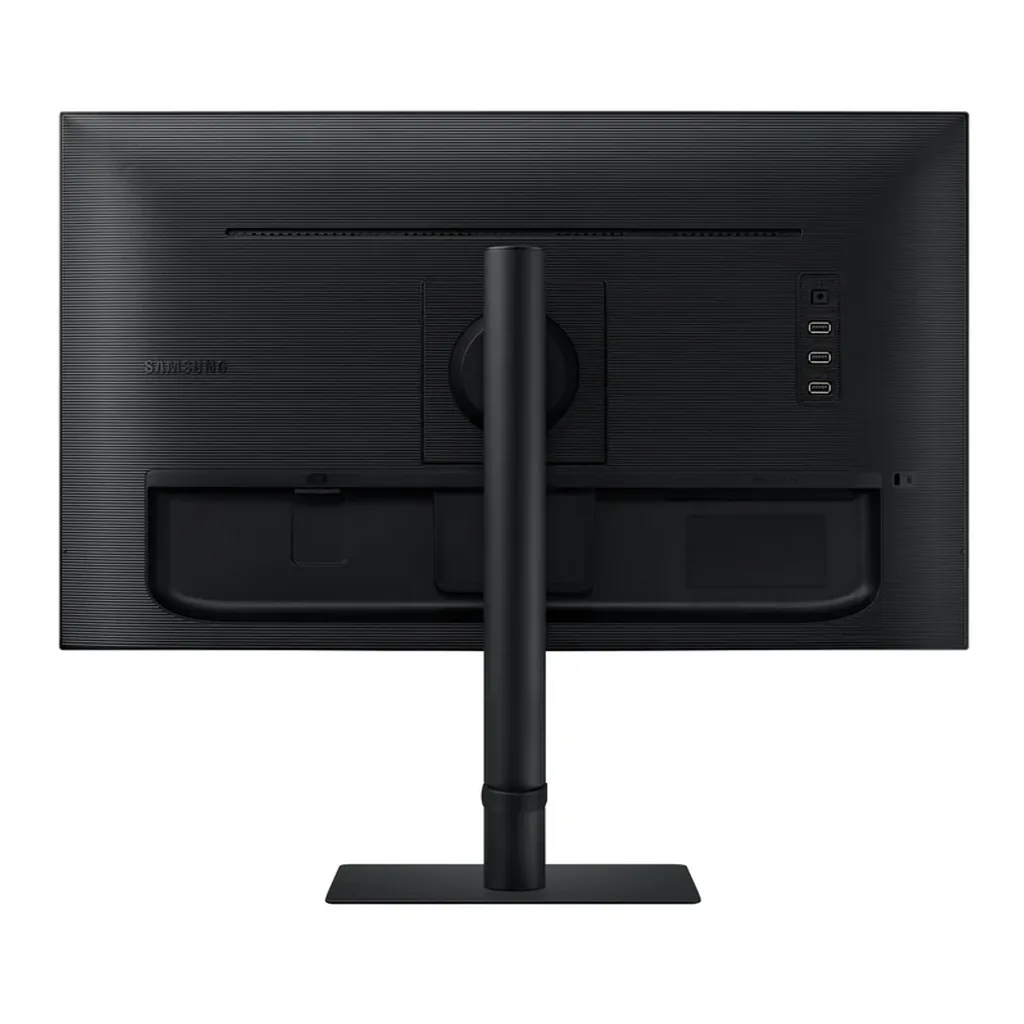

- Wall Mount: 100 x 100
Cables and accessories
- Power Cable Length: 1.5 m
- HDMI Cable: Yes
- DP Cable: Yes
- Mini-Display Port Cable: No
- USB Type-C Cable: Yes
- Mini-Display Gender: No
Tech Specs
| Manufacturer part number | LS27B804PXNXGO |
|---|---|
| Display | |
| Screen Size (Class) | 27 |
| Flat / Curved | Flat |
| Active Display Size (HxV)(mm) | 596.736 x 335.664mm |
| Aspect Ratio | 16:9 |
| Panel Type | IPS |
| Brightness (Typical) | 350 cd/㎡ |
| Brightness (Min) | 320 cd/㎡ |
| Contrast Ratio Static | 1000:1(Typ) |
| Contrast Ratio (Dynamic) | Mega DCR |
| HDR(High Dynamic Range) | VESA DisplayHDR 400 |
| Resolution | 4K (3,840 x 2,160) |
| Response Time (ms) | 5ms |
| Viewing Angle (H/V) | 178°/178° |
| Color Support | Max 1.07B |
| Color Gamut (DCI Coverage) | 98% (Custom mode) |
| Frame Rate | Max 60Hz |
| General Feature | |
| Eco Saving Plus | Yes |
| Eco Light Sensor | Yes |
| Eye Saver Mode | Yes |
| Flicker Free | Yes |
| Picture-In-Picture | Yes |
| Picture-By-Picture | Yes |
| Game Mode | Yes |
| Image Size | Yes |
| Windows Certification | Windows10 |
| Off Timer Plus | Yes |
| Auto Source Switch+ | Yes |
| Adaptive Picture | Yes |
| Interface | |
| Wireless Display | No |
| D-Sub | No |
| DVI | No |
| Dual Link DVI | No |
| Display Port | 1 EA |
| Display Port Version | 1.4 |
| Display Port Out | No |
| Mini-Display Port | No |
| HDMI | 1 EA |
| HDMI Version | 2 |
| HDCP Version (HDMI) | 2.2 |
| Audio In | No |
| Headphone | Yes |
| USB Ports | 3 |
| USB Hub Version | 3.0x3ea |
| USB-C | 1 EA |
| USB-C Charging Power | 90W |
| Ethernet (LAN) | 1 EA |
| Built-in Camera | No |
| Audio | |
| Speaker | No |
| Operation Conditions | |
| Temperature | 10~40 ℃ |
| Humidity | 10~80,non-condensing |
| Calibration | |
| Factory Tunning | Yes |
| Color Mode | Custom, High Bright, sRGB, BT.709, DCI-P3, DICOM Simulation, Cinema, Dynamic Contrast |
| Factory Calibration Report | Yes |
| Design | |
| Front Color | BLACK |
| Rear Color | BLACK |
| Stand Color | Black |
| Stand Type | HAS |
| HAS(Height Adjustable Stand) | 120.0mm(±5.0mm) |
| Tilt | -2.0˚(±3.0˚)~25.0˚(±3.0˚) |
| Swivel | -30.0˚(±3.0˚)~30.0˚(±3.0˚) |
| Pivot | -2.0˚(±2.0˚)~92.0˚(±2.0˚) |
| Wall Mount | 100 x 100 |
| Eco | |
| TCO Certified | Yes |
| EPEAT | Silver (US, CA) |
| Recycled Plastic | OVER 3 % |
| Power | |
| Power Supply | AC 100~240V |
| Type | Internal Power |
| Dimensions | |
| Set Dimension with Stand (WxHxD) | 24.2 x 21.7 x 7.7 inch |
| Set Dimension without Stand (WxHxD) | 24.2 x 14.5 x 1.7 inch |
| Package Dimension (WxHxD) | 27.0 x 6.7 x 17.7 inch |
| Weight | |
| Package Weight | 18.5 |
| Set Weight with Stand (lb) | 14.8 lb |
| Set Weight without Stand (lb) | 10.4 lb |
| Accessory | |
| Power Cable Length | 1.5 m |
| HDMI Cable | Yes |
| DP Cable | Yes |
| Mini-Display Port Cable | No |
| USB Type-C Cable | Yes |
| Mini-Display Gender | No |
| Certification and Compliance | |
| UL Glare Free | Yes |
Any manufacturer warranty or coverage stated in these specifications is subject to Samsung’s eligibility and terms. Optional protection plans and manufacturer promotions are not included unless expressly listed.
