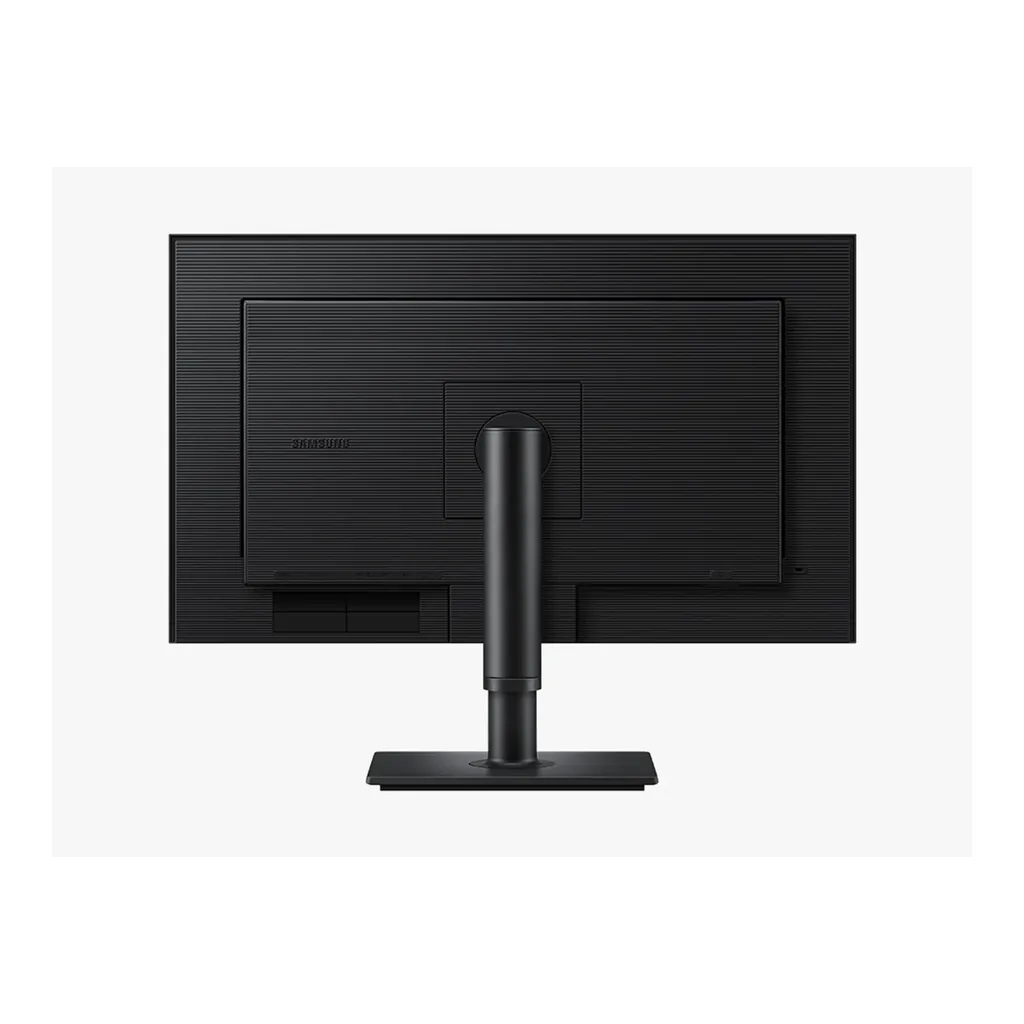

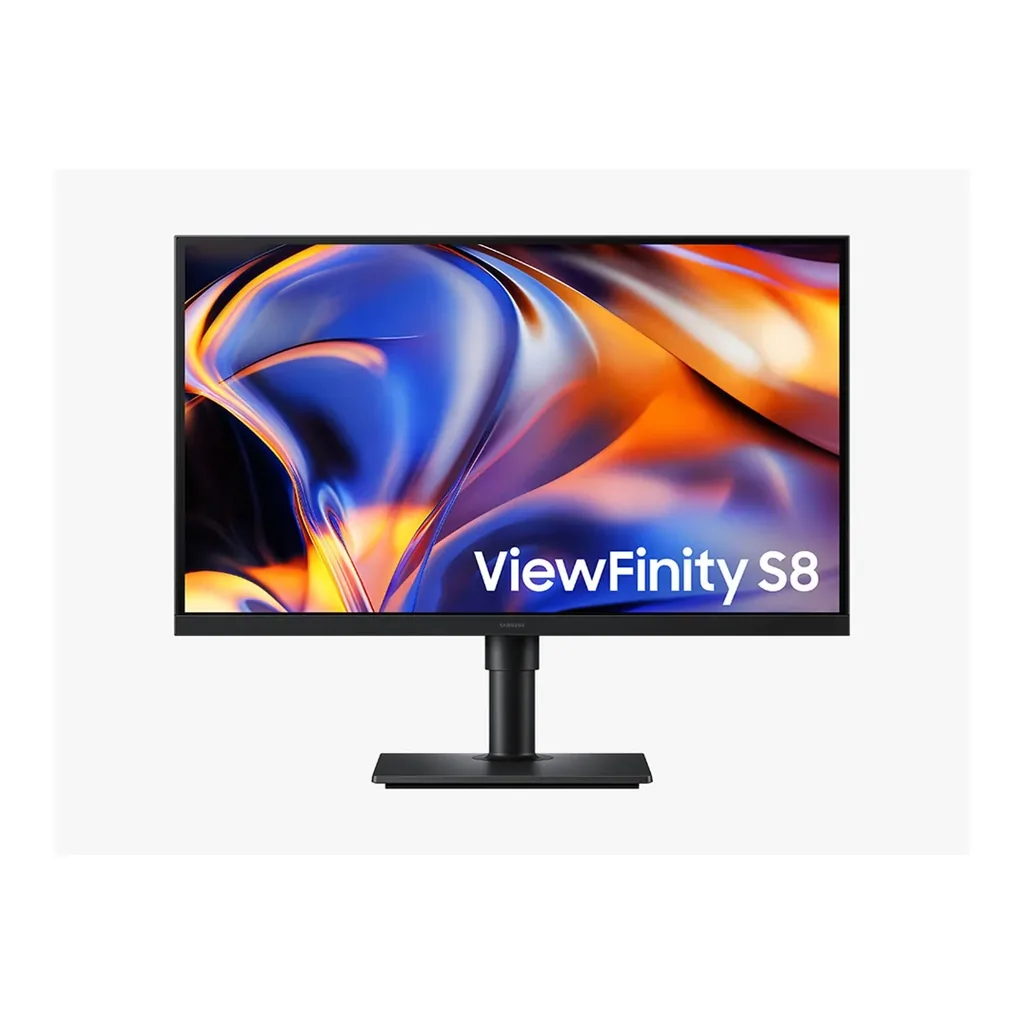

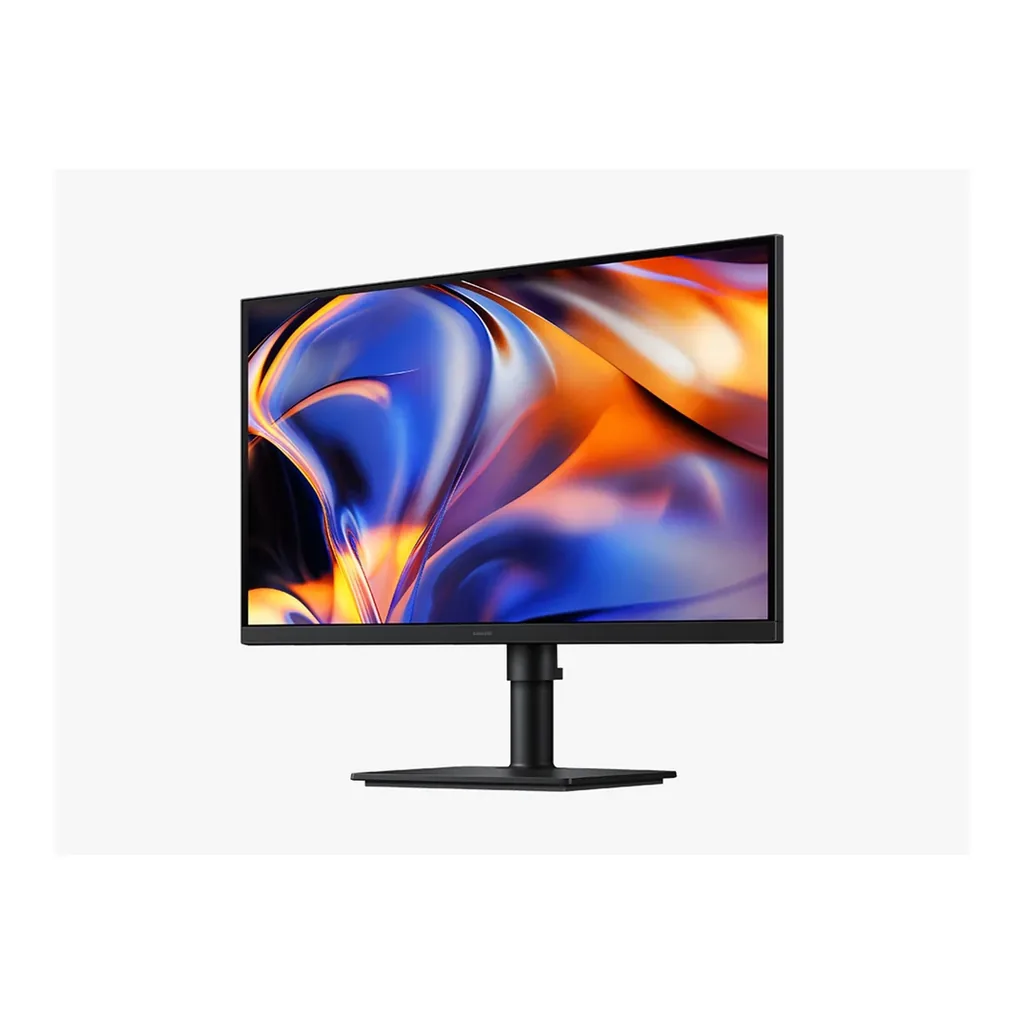

ViewFinity S8 S80HF for your desktop
The Samsung LS27H800EFAXZA pairs a 27-inch IPS panel with 5K (5120 x 2880) resolution and a refresh rate of max 60 hz. Its 16:9 aspect ratio defines the workspace available on screen.
Picture and motion
- Brightness (Typical): 350 cd/㎡
- Brightness (Min): 280 cd/㎡
- Contrast Ratio Static: 1,000:1
- HDR(High Dynamic Range): HDR10
- Response Time (ms): 5 (GTG)
- Color Gamut (sRGB Coverage): 99 %
Maximum resolution and refresh rate depend on the connected device, cable, port and display settings. Response-time figures follow Samsung’s stated measurement method.
Display features
- Energy Saving Solution: Yes
- Eye Saver Mode: Yes
- Flicker Free: Yes
- Picture-In-Picture: Yes
- Picture-By-Picture: Yes
- Image Size: Yes
- Windows Certification: Windows11
- Off Timer Plus: Yes
- Auto Source Switch: Auto Source Switch+
- KVM Switch: Yes

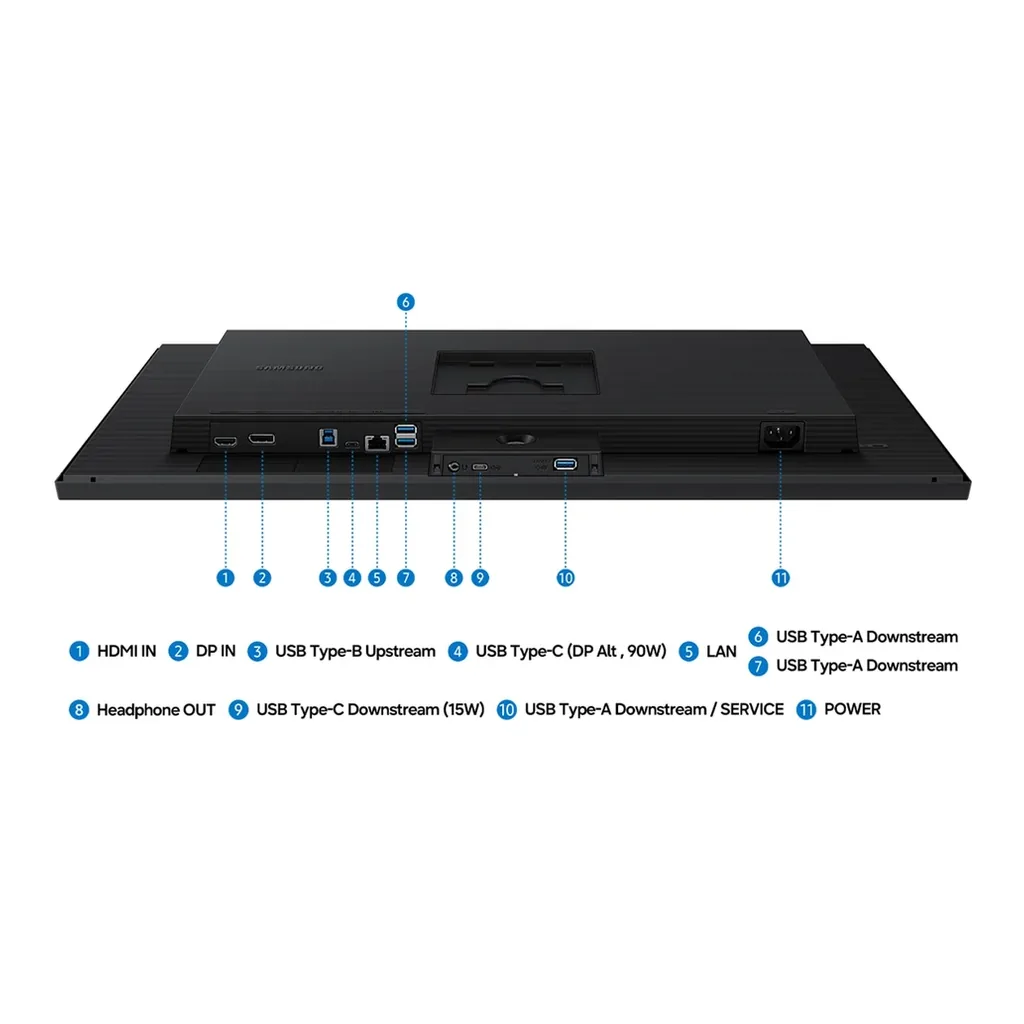

Connections and audio
- Display Port: 1 EA
- HDMI: 1 EA
- Headphone: 1
- USB-C: 1 EA
- USB-C Charging Power: 90 W
- USB-B Upstream Port: 1
- USB Type-A Downstream Port: 3 EA
- USB Type-C Downstream Port: 1
- Ethernet (LAN): 1 EA
- Speaker: No
Stand and installation
- Stand Type: HAS Pivot
- HAS(Height Adjustable Stand): 120.0(±5.0) 4.72 (±0.2) in
- Tilt: -3˚(±2˚) ~ 25˚(±2˚)
- Swivel: -45˚(±3˚) ~ 45˚(±3˚)
- Pivot: -92˚(±2˚) ~ 92˚(±2˚)
- Wall Mount: 100.0 x 100.0 mm 3.94 x 3.94 in
Cables and accessories
- Power Cable Length: 1.5 m (4.92 Foot)
- USB Type-C Cable: Yes
Tech Specs
| Manufacturer part number | LS27H800EFAXZA |
|---|---|
| Display | |
| Screen Size (Class) | 27 |
| Flat / Curved | Flat |
| Active Display Size (HxV)(mm) | 596.736 x 335.664 mm 23.49 x 1.40 in |
| Aspect Ratio | 16:9 |
| Panel Type | IPS |
| Brightness (Typical) | 350 cd/㎡ |
| Brightness (Min) | 280 cd/㎡ |
| Contrast Ratio Static | 1,000:1 |
| HDR(High Dynamic Range) | HDR10 |
| Resolution | 5K (5120 x 2880) |
| Response Time (ms) | 5 (GTG) |
| Viewing Angle (H/V) | 178 / 178 |
| Color Support | Max 1.07B |
| Color Gamut (sRGB Coverage) | 99 % |
| Frame Rate | Max 60 Hz |
| General Feature | |
| Energy Saving Solution | Yes |
| Eye Saver Mode | Yes |
| Flicker Free | Yes |
| Picture-In-Picture | Yes |
| Picture-By-Picture | Yes |
| Image Size | Yes |
| Windows Certification | Windows11 |
| Off Timer Plus | Yes |
| Auto Source Switch | Auto Source Switch+ |
| KVM Switch | Yes |
| Interface | |
| Display Port | 1 EA |
| Display Port Version | 1.4 |
| HDCP Version (DP) | 2.2 |
| HDMI | 1 EA |
| HDMI Version | 2.1 |
| HDCP Version (HDMI) | 2.2 |
| Headphone | 1 |
| USB-C | 1 EA |
| USB-C Charging Power | 90 W |
| USB-B Upstream Port | 1 |
| USB Type-A Downstream Port | 3 EA |
| USB Type-A Downstream Version | 3.2 Gen1 |
| USB Type-C Downstream Port | 1 |
| HDCP Version (USB-C) | 2.2 |
| Ethernet (LAN) | 1 EA |
| Audio | |
| Speaker | No |
| Operation Conditions | |
| Temperature | 10 ~ 40 ℃ |
| Humidity | 10 ~ 80 (Non-Condensing)% |
| Calibration | |
| Factory Tunning | Yes |
| Design | |
| Front Color | Black |
| Rear Color | Black |
| Stand Color | Black |
| Stand Type | HAS Pivot |
| HAS(Height Adjustable Stand) | 120.0(±5.0) 4.72 (±0.2) in |
| Tilt | -3˚(±2˚) ~ 25˚(±2˚) |
| Swivel | -45˚(±3˚) ~ 45˚(±3˚) |
| Pivot | -92˚(±2˚) ~ 92˚(±2˚) |
| Wall Mount | 100.0 x 100.0 mm 3.94 x 3.94 in |
| Eco | |
| Recycled Plastic | 15 % |
| Power | |
| Power Supply | AC 100 – 240 V |
| Power Consumption (Max) | 190 W |
| Type | Internal Power |
| Dimensions | |
| Set Dimension with Stand (WxHxD) | 24.26 x 22.06 x 8.58 in (616.3 x 560.2 x 218 mm) |
| Set Dimension without Stand (WxHxD) | 24.26 x 14.43 x 1.81 in (616.3 x 366.5 x 46 mm) |
| Package Dimension (WxHxD) | 22.24 x 4.69 x 19.29 in (565 x 119 x 490 mm) |
| Weight | |
| Set Weight with Stand (lb) | 5.4 kg (11.90 lbs) |
| Set Weight without Stand (lb) | 4.0 kg (8.82 lbs) |
| Shipping Weight | 7.0 kg (15.43 lbs) |
| Accessory | |
| Power Cable Length | 1.5 m (4.92 Foot) |
| USB Type-C Cable | Yes |
Any manufacturer warranty or coverage stated in these specifications is subject to Samsung’s eligibility and terms. Optional protection plans and manufacturer promotions are not included unless expressly listed.
