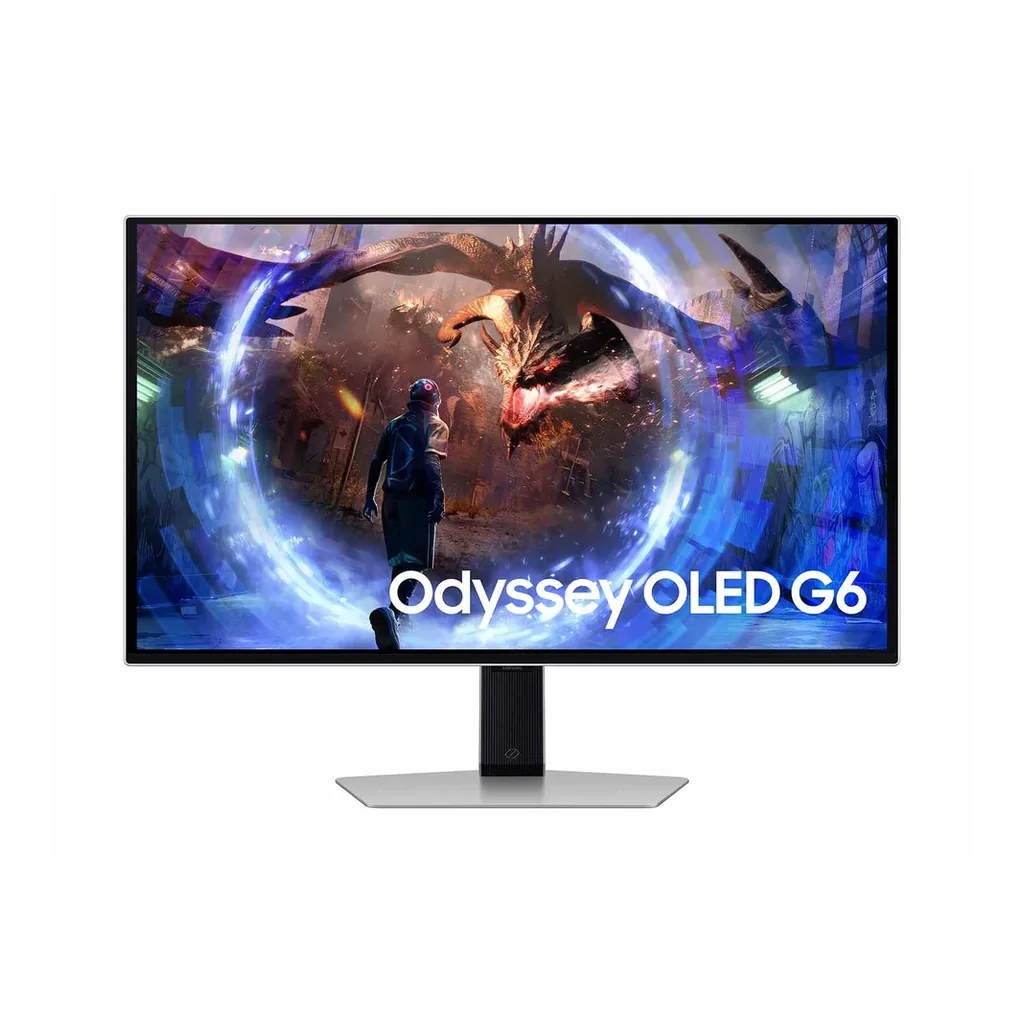

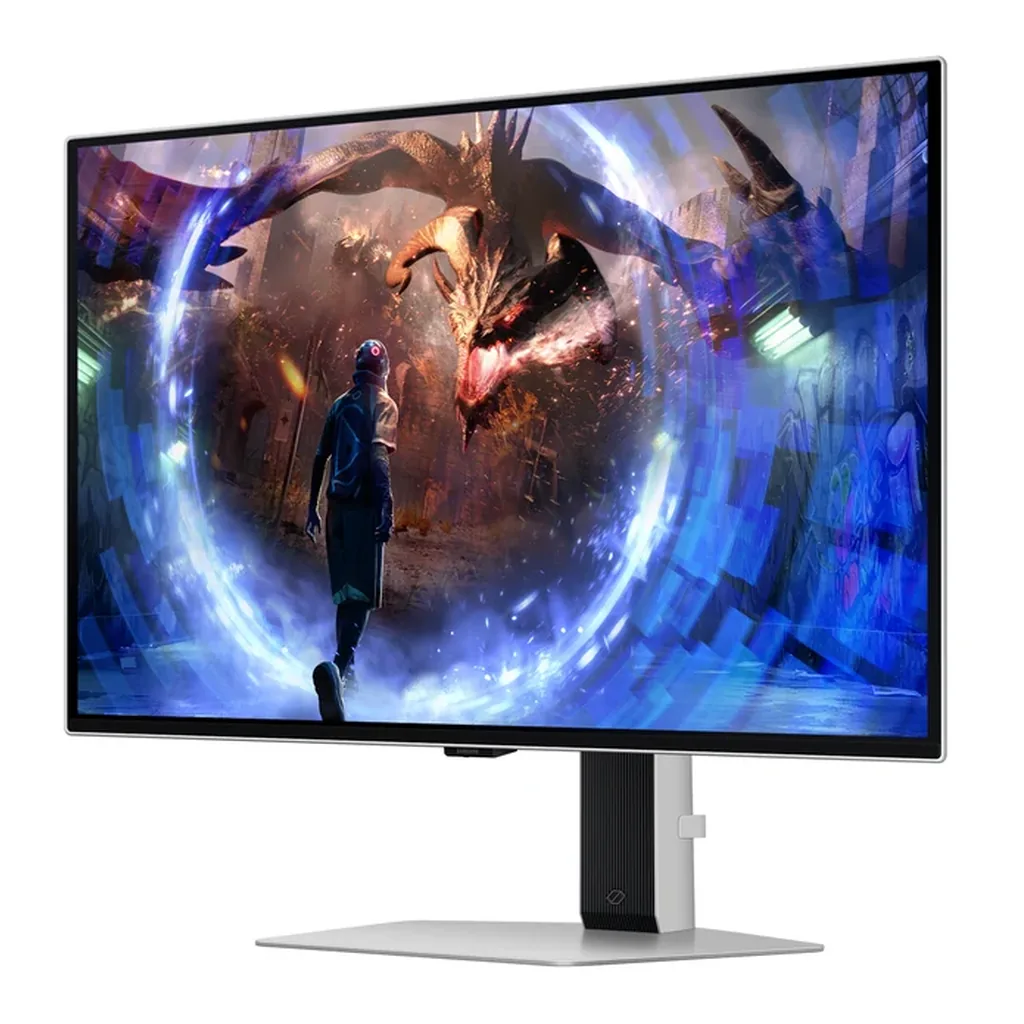

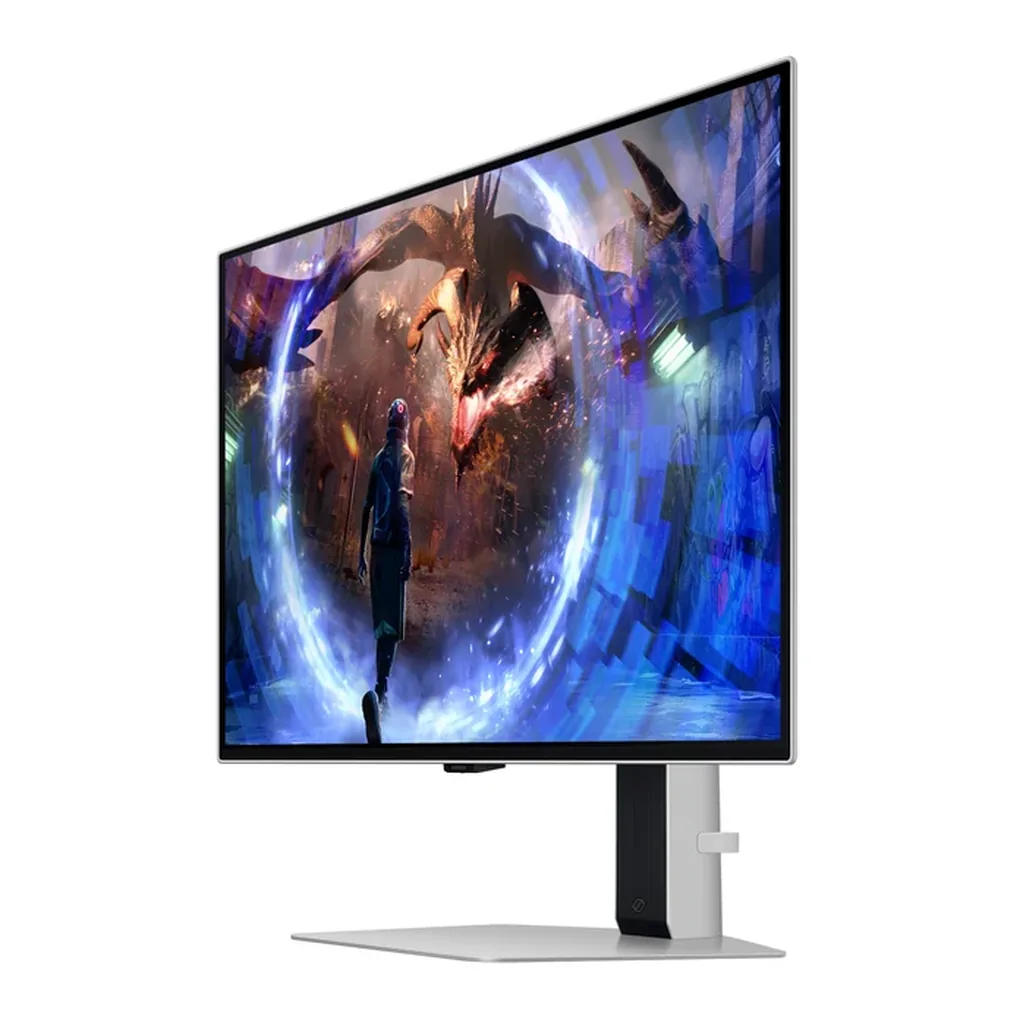

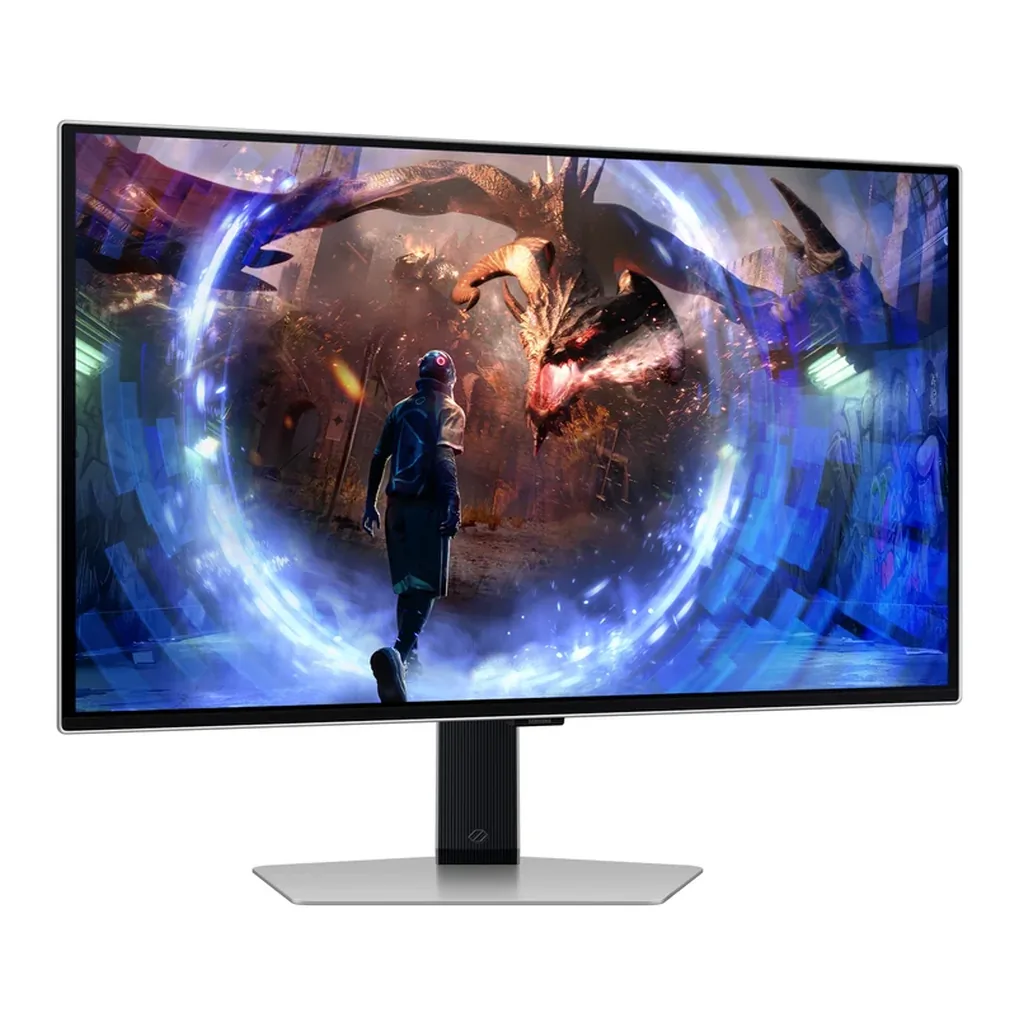

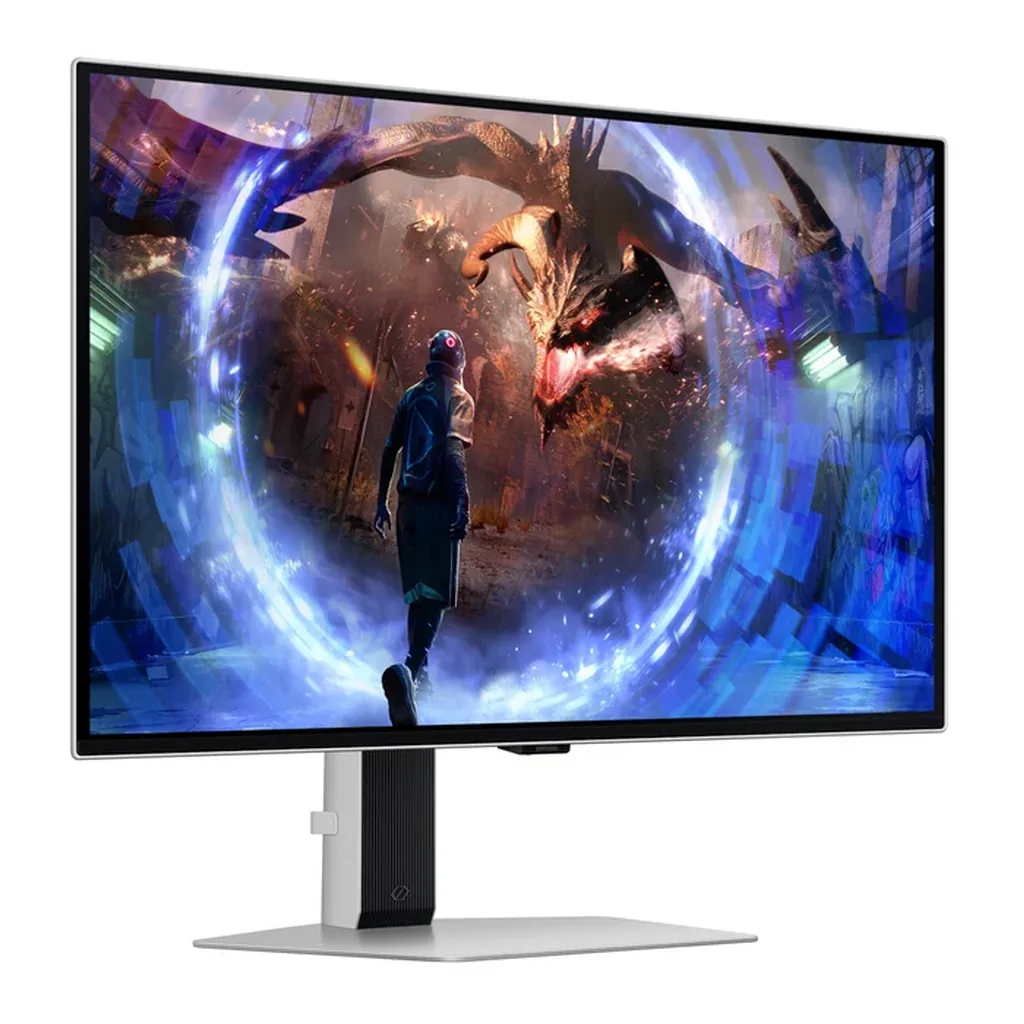

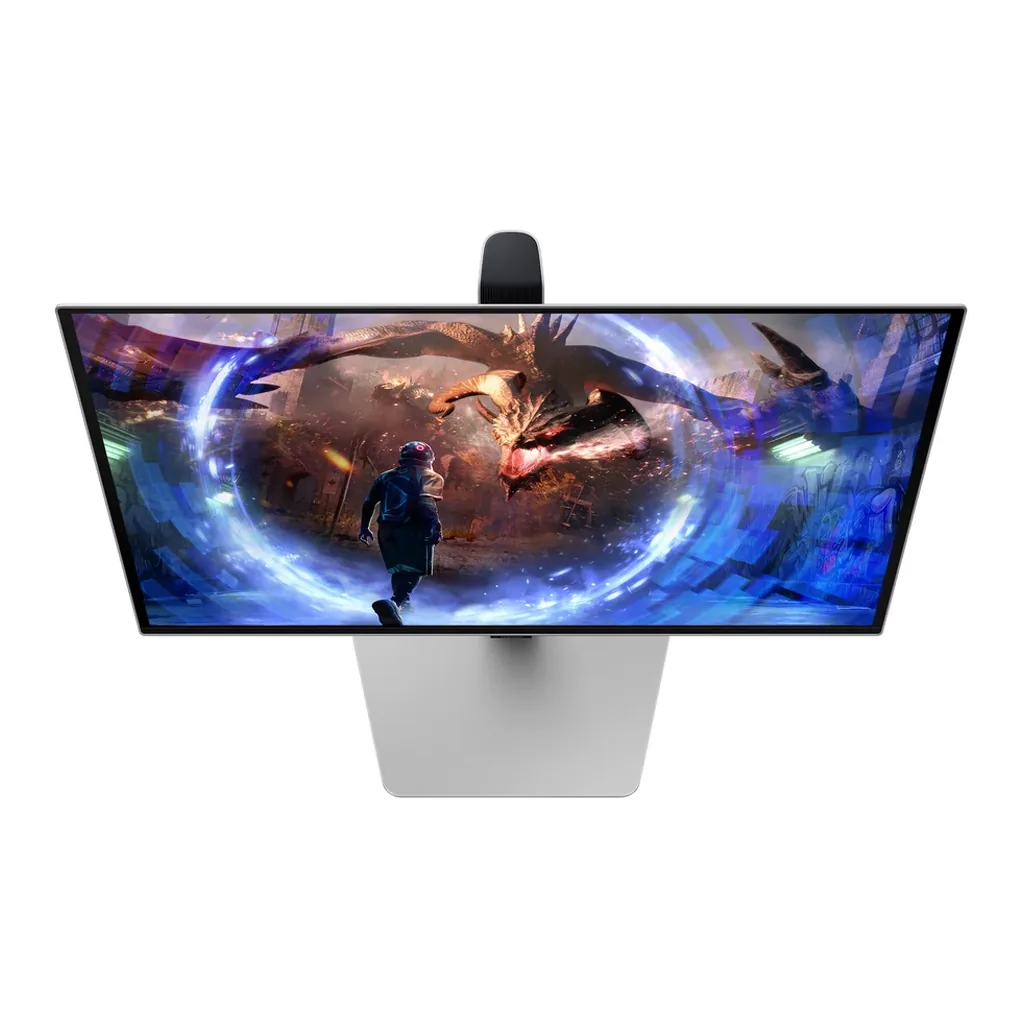

Odyssey OLED G6 G60SD for your desktop
The Samsung LS27DG602SNXZA pairs a 27-inch OLED panel with QHD (2,560 x 1,440) resolution and a refresh rate of max 360hz. Its 16:9 aspect ratio defines the workspace available on screen.
Picture and motion
- Brightness (Typical): 250 cd/㎡
- Brightness (Min): 200 cd/㎡
- Contrast Ratio Static: 1,000,000:1
- HDR(High Dynamic Range): HDR10
- HDR10+: HDR10+ Gaming
- Response Time (ms): 0.03ms(GTG)
- Color Gamut (DCI Coverage): 99% (CIE1976)
Maximum resolution and refresh rate depend on the connected device, cable, port and display settings. Response-time figures follow Samsung’s stated measurement method.
Display features
- Eye Saver Mode: Yes
- Flicker Free: Yes
- Picture-In-Picture: Yes
- Quantum Dot Color: Yes
- Image Size: Yes
- Windows Certification: Windows 11
- FreeSync: FreeSync Premium Pro
- Black Equalizer: Yes
- Virtual AIM Point: Yes
- Core Sync: Yes
- Super Arena Gaming UX: Yes
- Auto Source Switch: Auto Source Switch+
- Super Ultrawide GameView: Yes

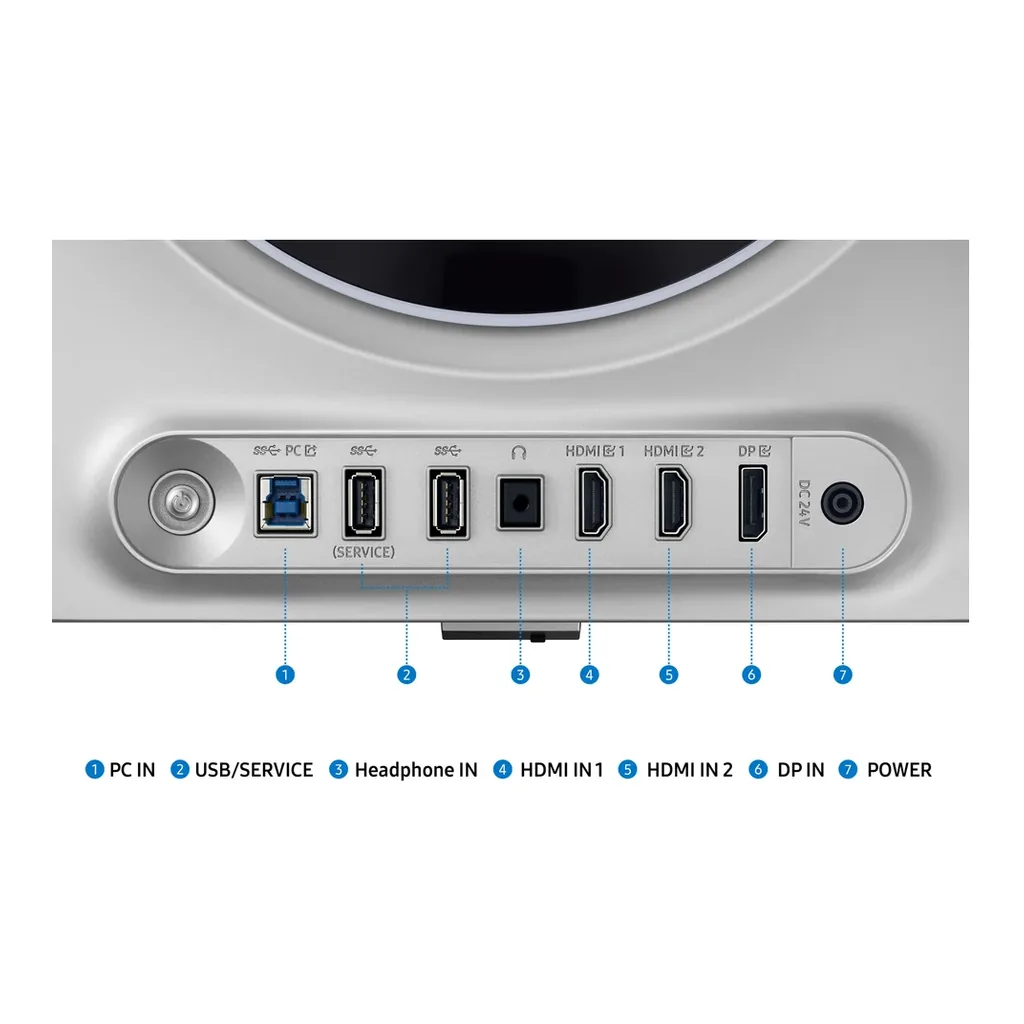

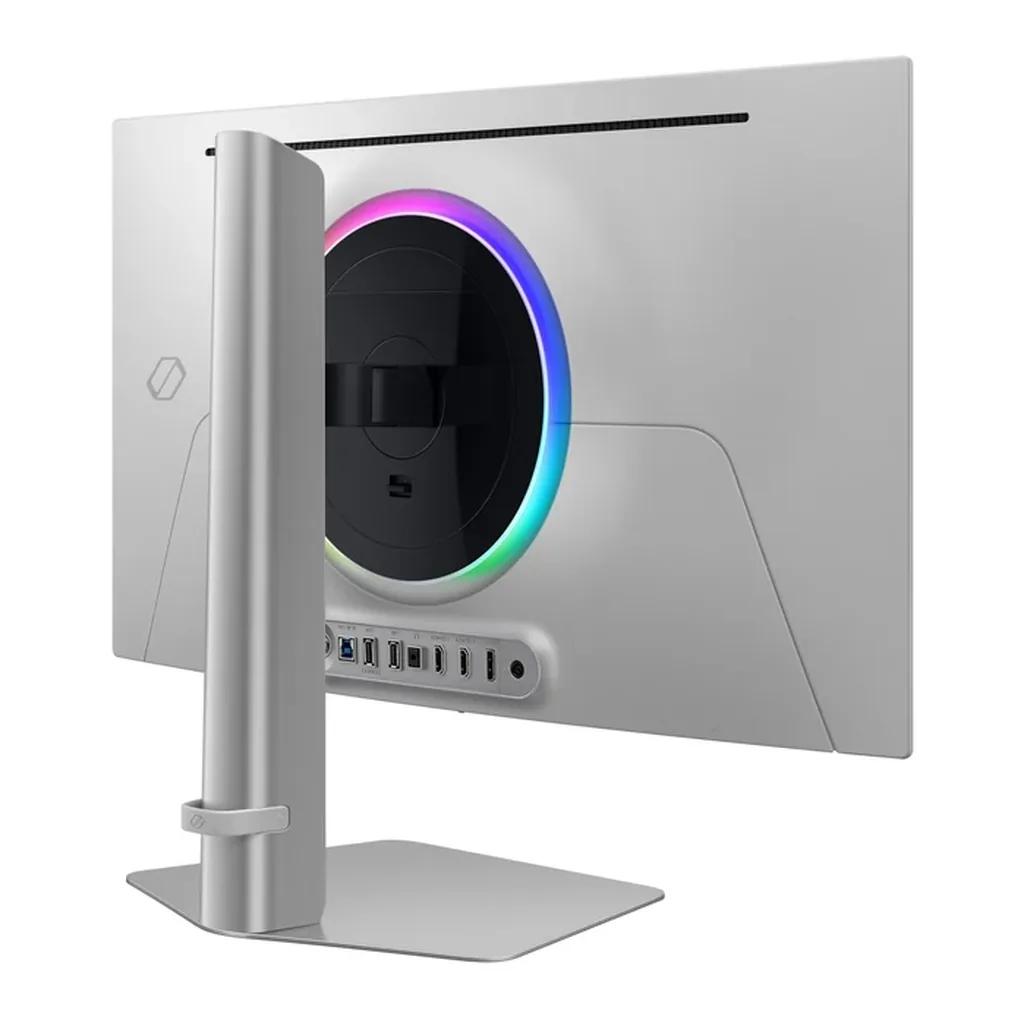

Connections and audio
- Display Port: 1 EA
- HDMI: 2 EA
- Headphone: Yes
- USB Ports: 2

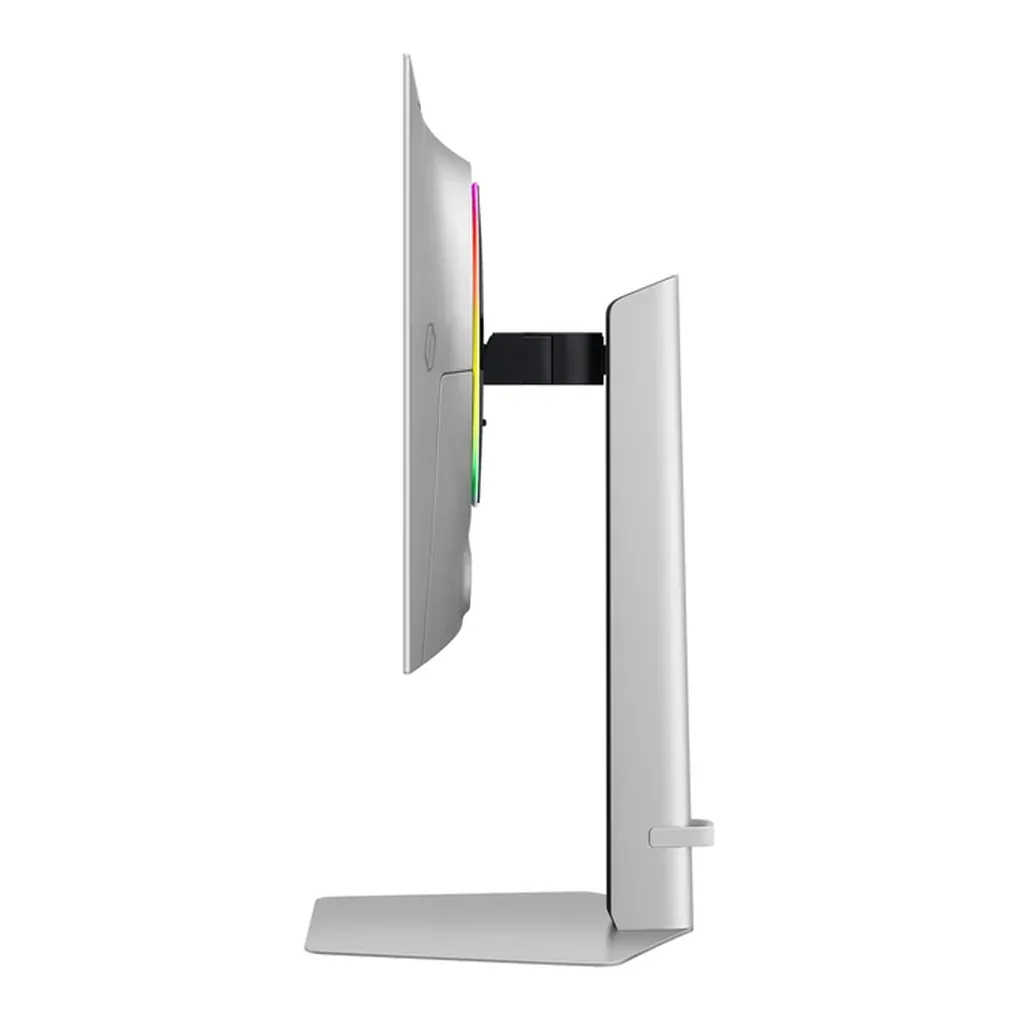

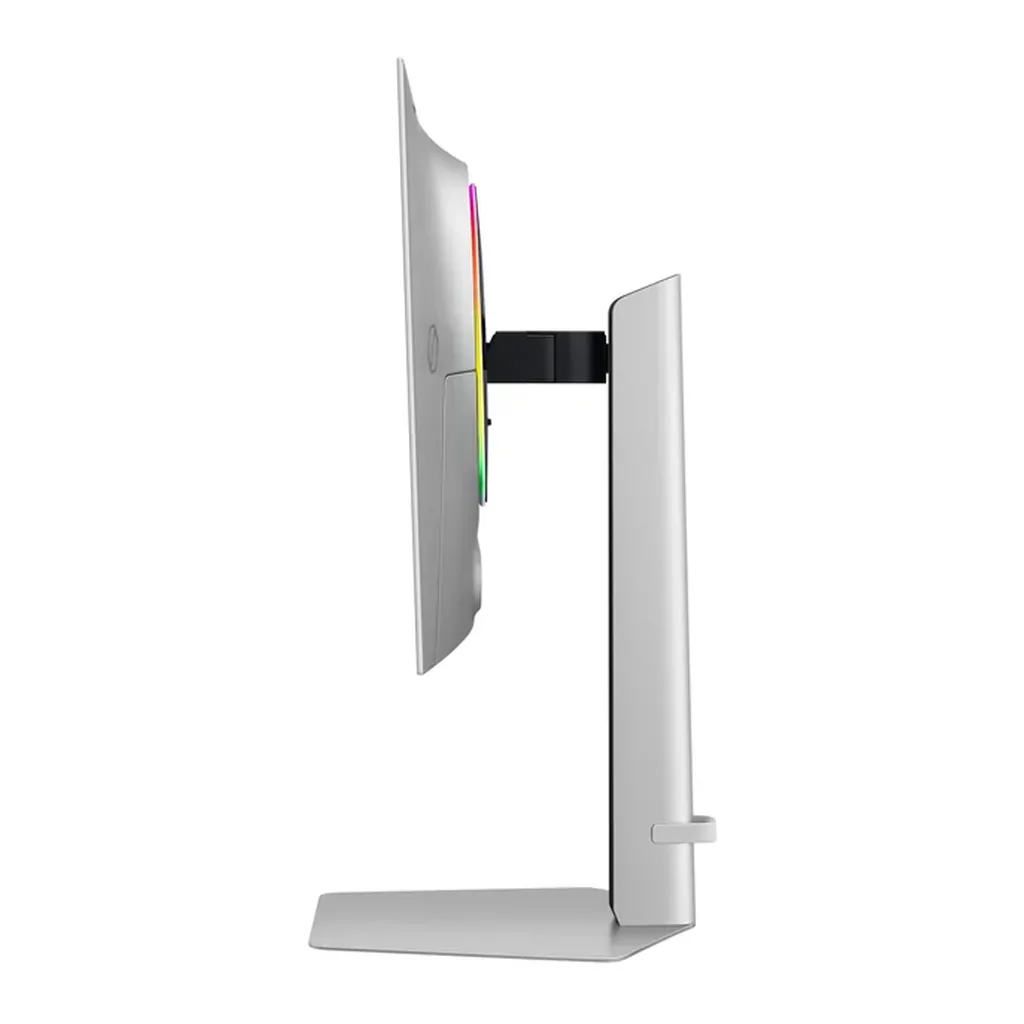

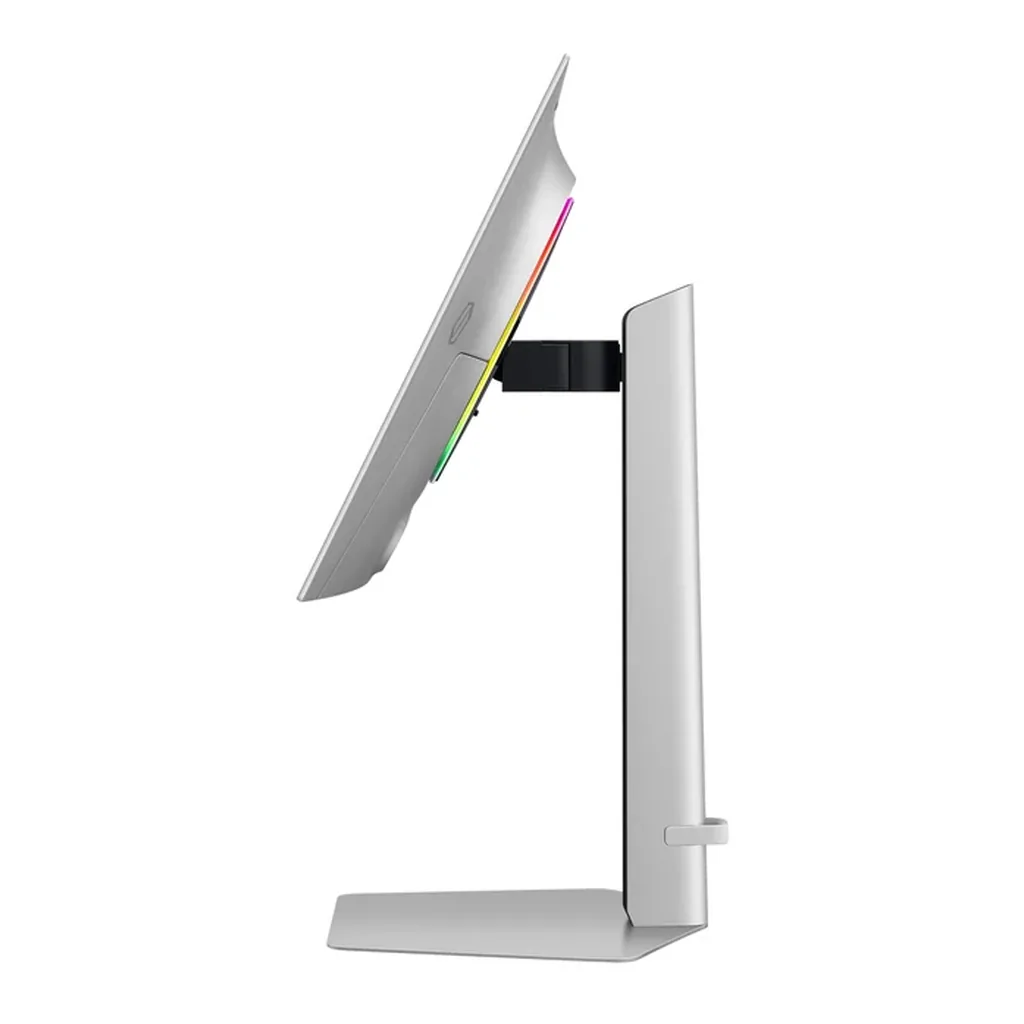

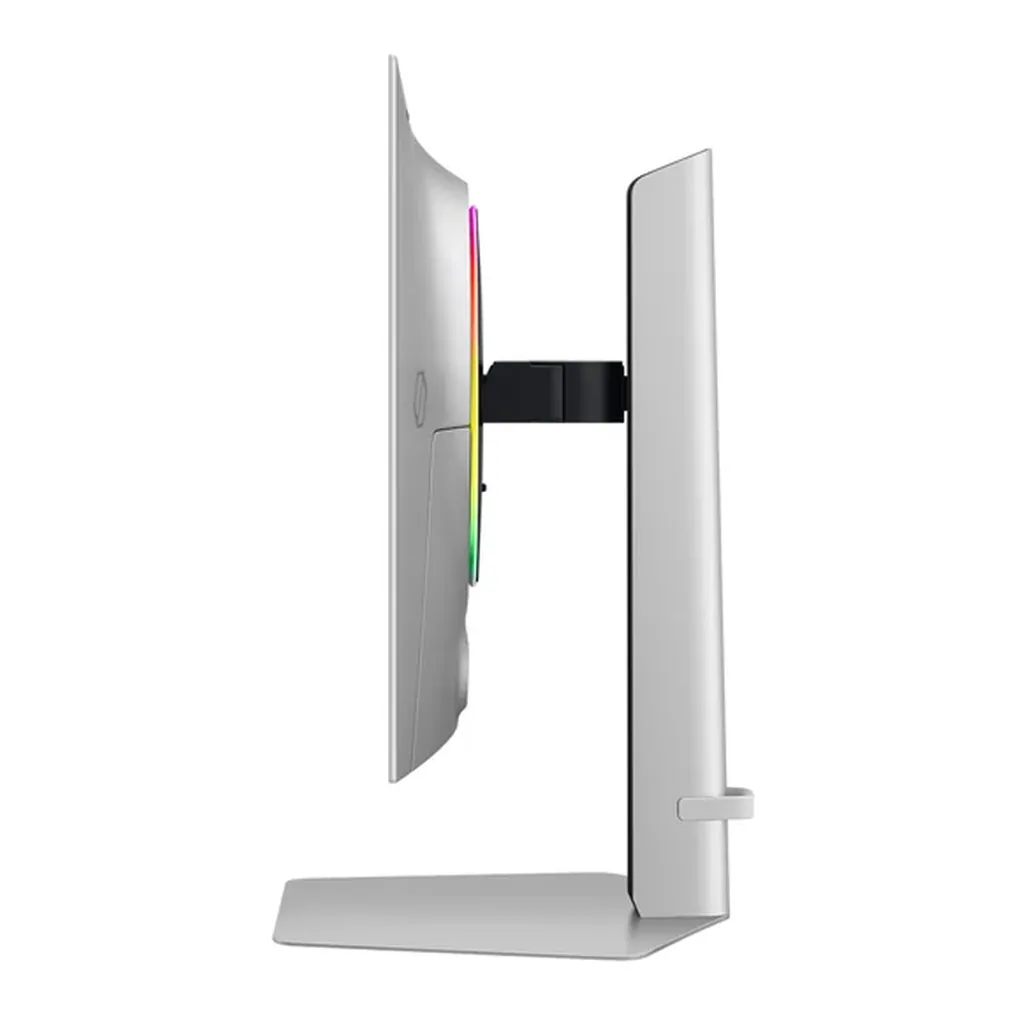

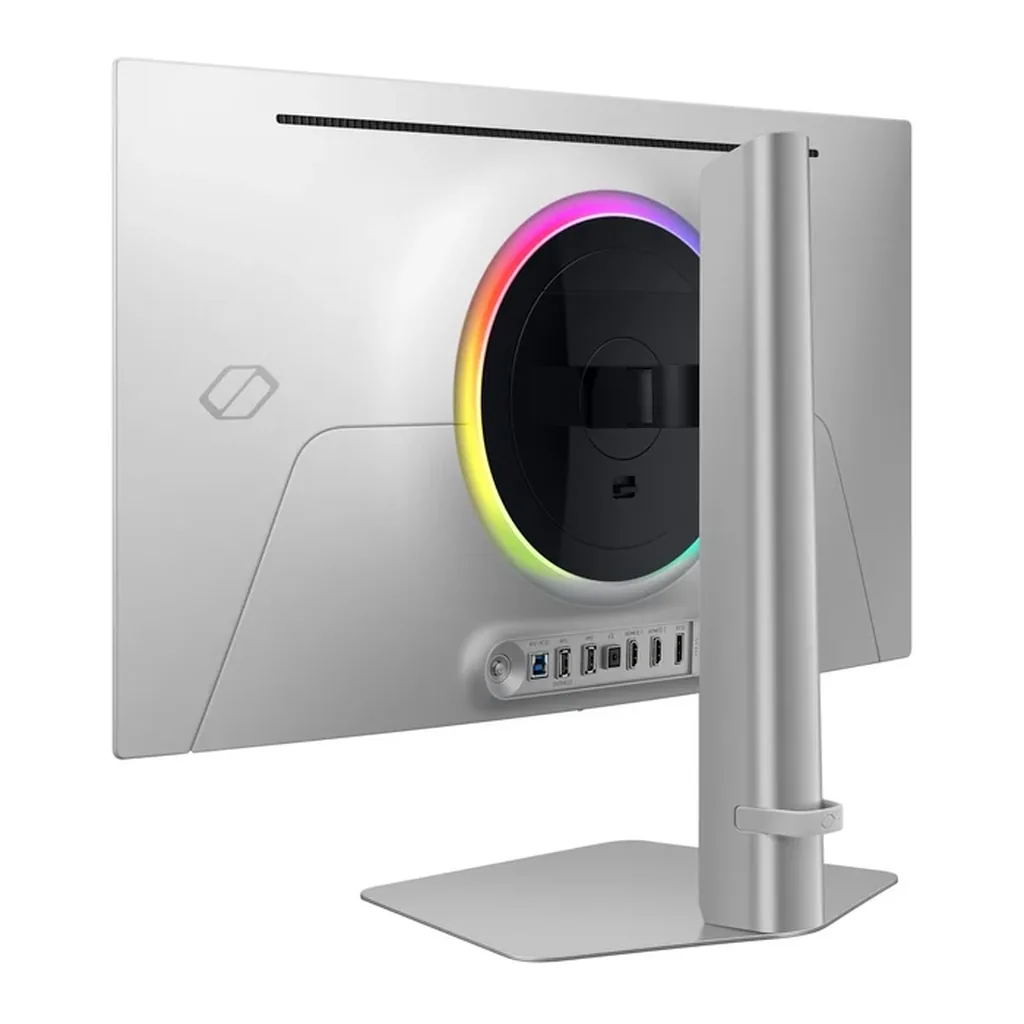

Stand and installation
- Stand Type: HAS PIVOT
- HAS(Height Adjustable Stand): 120.0 ±5.0
- Tilt: -2.0º(± 2°) ~ 25.0º(± 2°)
- Swivel: -30.0º(± 3°) ~ 30.0º(± 3°)

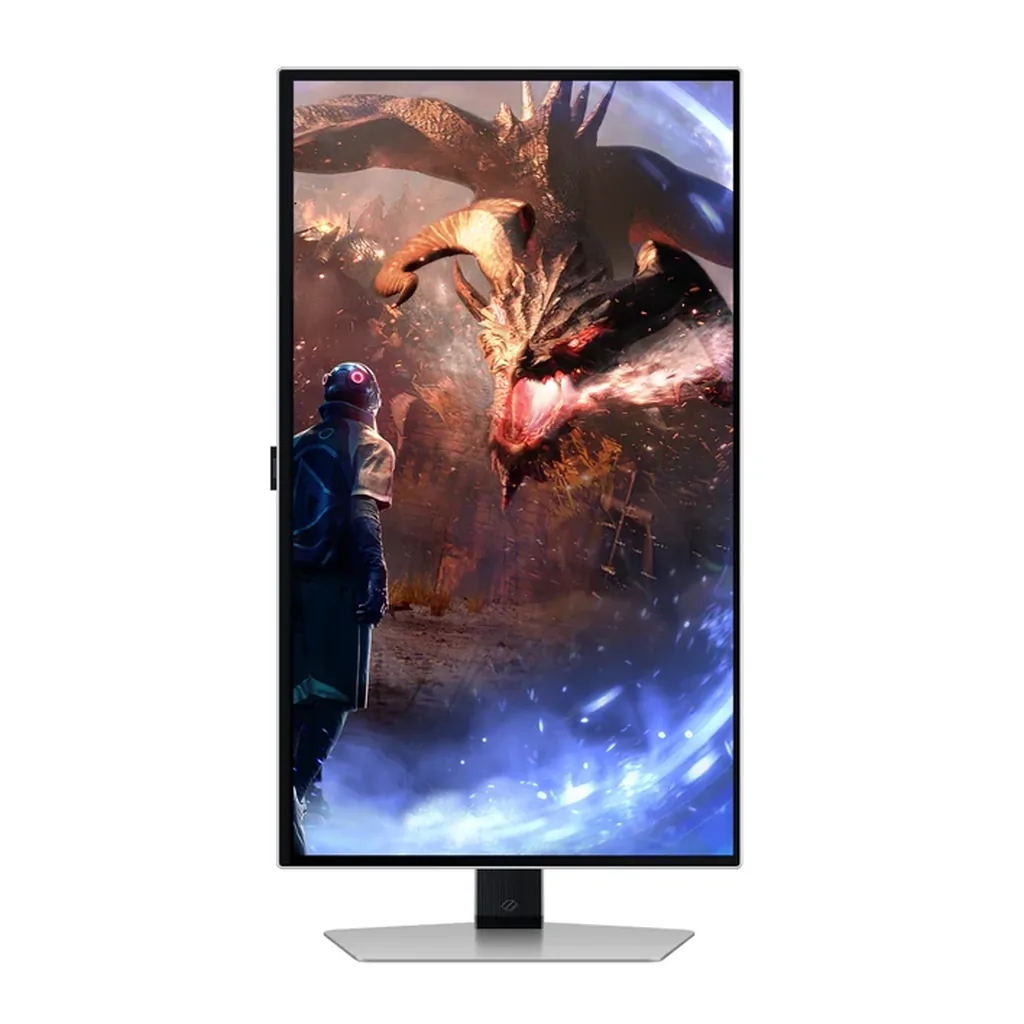

- Pivot: -92.0º(± 2°) ~ 92.0º(± 2°)
- Wall Mount: 100 x 100
Cables and accessories
- Power Cable Length: 1.5 m
- HDMI Cable: Yes
- DP Cable: Yes
- USB Type A to B Upstream Cable: Yes
Tech Specs
| Manufacturer part number | LS27DG602SNXZA |
|---|---|
| Display | |
| Screen Size (Class) | 27 |
| Flat / Curved | Flat |
| Active Display Size (HxV)(mm) | 23.24(H) x 13.12(V) inches |
| Aspect Ratio | 16:9 |
| Panel Type | OLED |
| Burn-In cover in warranty | Burn-in at normal usage covered within warranty. (But, not covered for Commercial, abuse or mis-use) |
| Brightness (Typical) | 250 cd/㎡ |
| Brightness (Min) | 200 cd/㎡ |
| Contrast Ratio Static | 1,000,000:1 |
| HDR(High Dynamic Range) | HDR10 |
| HDR10+ | HDR10+ Gaming |
| Resolution | QHD (2,560 x 1,440) |
| Response Time (ms) | 0.03ms(GTG) |
| Viewing Angle (H/V) | 178°(H)/178°(V) |
| Color Support | Max 1B |
| Color Gamut (DCI Coverage) | 99% (CIE1976) |
| Frame Rate | Max 360Hz |
| General Feature | |
| Eye Saver Mode | Yes |
| Flicker Free | Yes |
| Picture-In-Picture | Yes |
| Quantum Dot Color | Yes |
| Image Size | Yes |
| Windows Certification | Windows 11 |
| FreeSync | FreeSync Premium Pro |
| Black Equalizer | Yes |
| Virtual AIM Point | Yes |
| Core Sync | Yes |
| Super Arena Gaming UX | Yes |
| Auto Source Switch | Auto Source Switch+ |
| Super Ultrawide GameView | Yes |
| Interface | |
| Display Port | 1 EA |
| Display Port Version | 1.4 |
| HDCP Version (DP) | 2.2 |
| HDMI | 2 EA |
| HDMI Version | 2.1 |
| HDCP Version (HDMI) | 2.2 |
| Headphone | Yes |
| USB Ports | 2 |
| USB Hub Version | 3.0 |
| Operation Conditions | |
| Temperature | 10~40 ℃ |
| Humidity | 10~80,non-condensing |
| Design | |
| Front Color | SILVER |
| Rear Color | SILVER |
| Stand Color | Silver |
| Stand Type | HAS PIVOT |
| HAS(Height Adjustable Stand) | 120.0 ±5.0 |
| Tilt | -2.0º(± 2°) ~ 25.0º(± 2°) |
| Swivel | -30.0º(± 3°) ~ 30.0º(± 3°) |
| Pivot | -92.0º(± 2°) ~ 92.0º(± 2°) |
| Wall Mount | 100 x 100 |
| Eco | |
| Recycled Plastic | Yes |
| Power | |
| Power Supply | AC 100~240V |
| Power Consumption (Max) | 140 W |
| Type | External Adaptor |
| Accessory | |
| Power Cable Length | 1.5 m |
| HDMI Cable | Yes |
| DP Cable | Yes |
| USB Type A to B Upstream Cable | Yes |
| Certification and Compliance | |
| UL Glare Free | Yes |
| Pantone Validated | Yes |
| Dimensions | |
| Product dimensions with stand (W x H x D) | 24.08 x 21.82 x 10.37 in (611.7 x 554.2 x 263.5 mm) |
| Product dimensions without stand (W x H x D) | 24.08 x 13.93 x 1.94 in (611.7 x 353.8 x 49.2 mm) |
| Package dimensions (W x H x D) | 26.93 x 7.87 x 18.27 in (684.0 x 200.0 x 464.0 mm) |
| Weight | |
| Product weight with stand | 15.21 lb (6.9 kg) |
| Product weight without stand | 8.38 lb (3.8 kg) |
| Package weight | 20.94 lb (9.5 kg) |
Any manufacturer warranty or coverage stated in these specifications is subject to Samsung’s eligibility and terms. Optional protection plans and manufacturer promotions are not included unless expressly listed.
Official Samsung U.S. product information · Measurement reference
