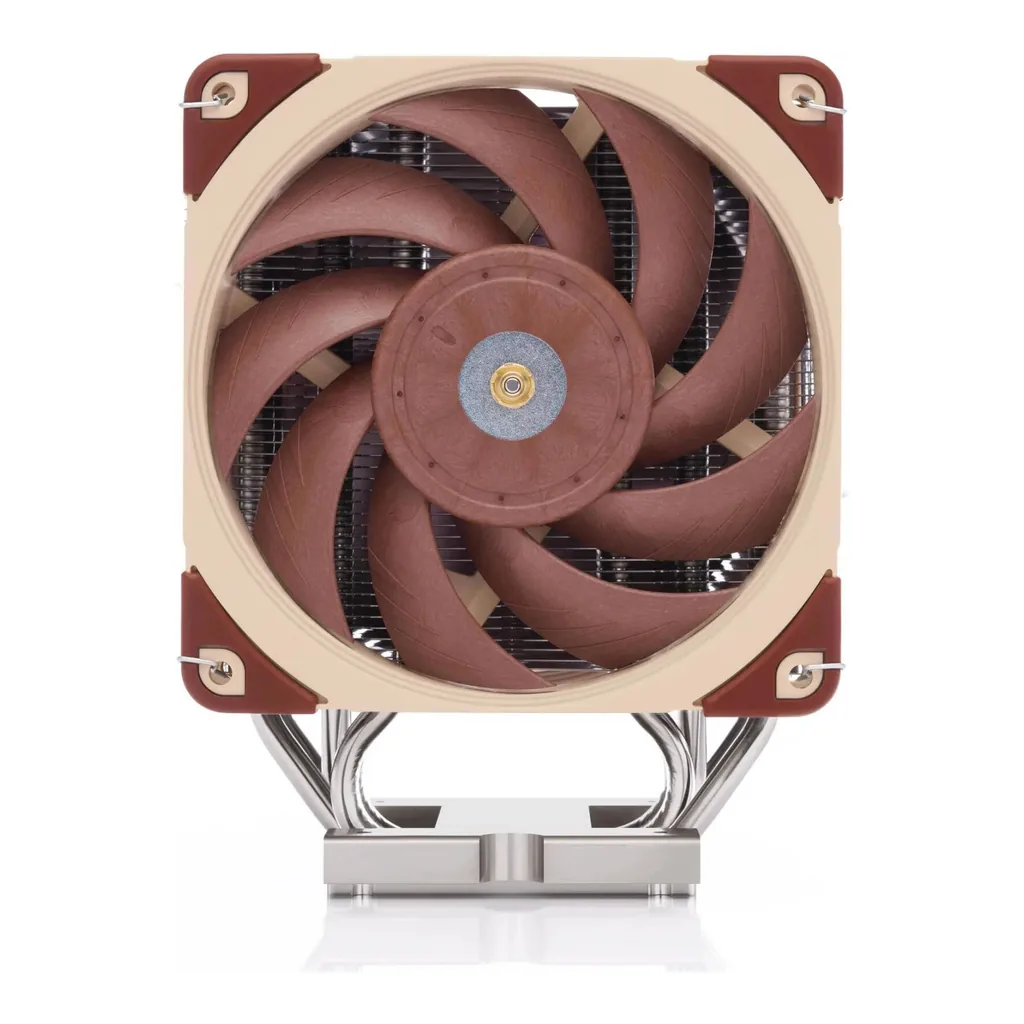

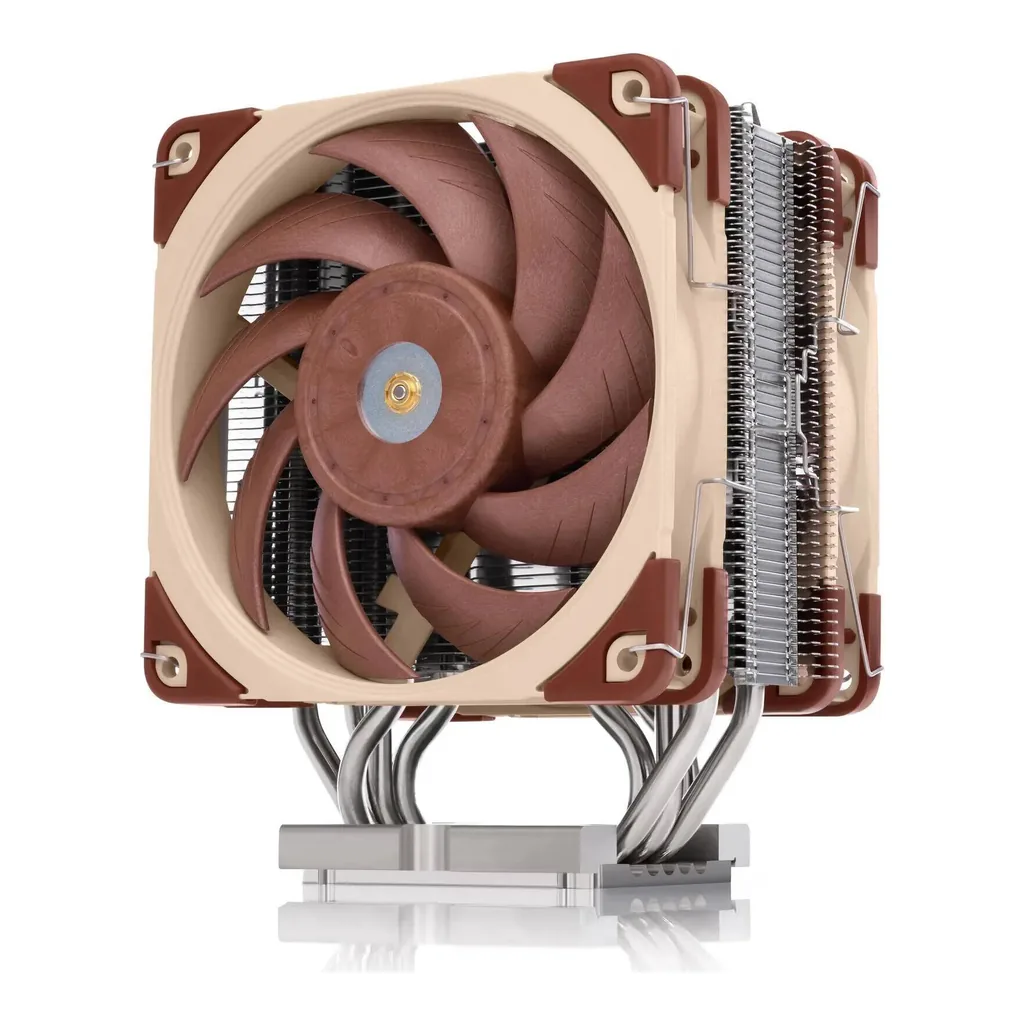

Noctua NH-U12S DX-4677 CPU Air Cooler, Brown.
Key specifications
- Dual 120mm PWM Fans
- Intel LGA4677 LGA4710 Server and Workstation Cooler
- Premium Quiet Cooling

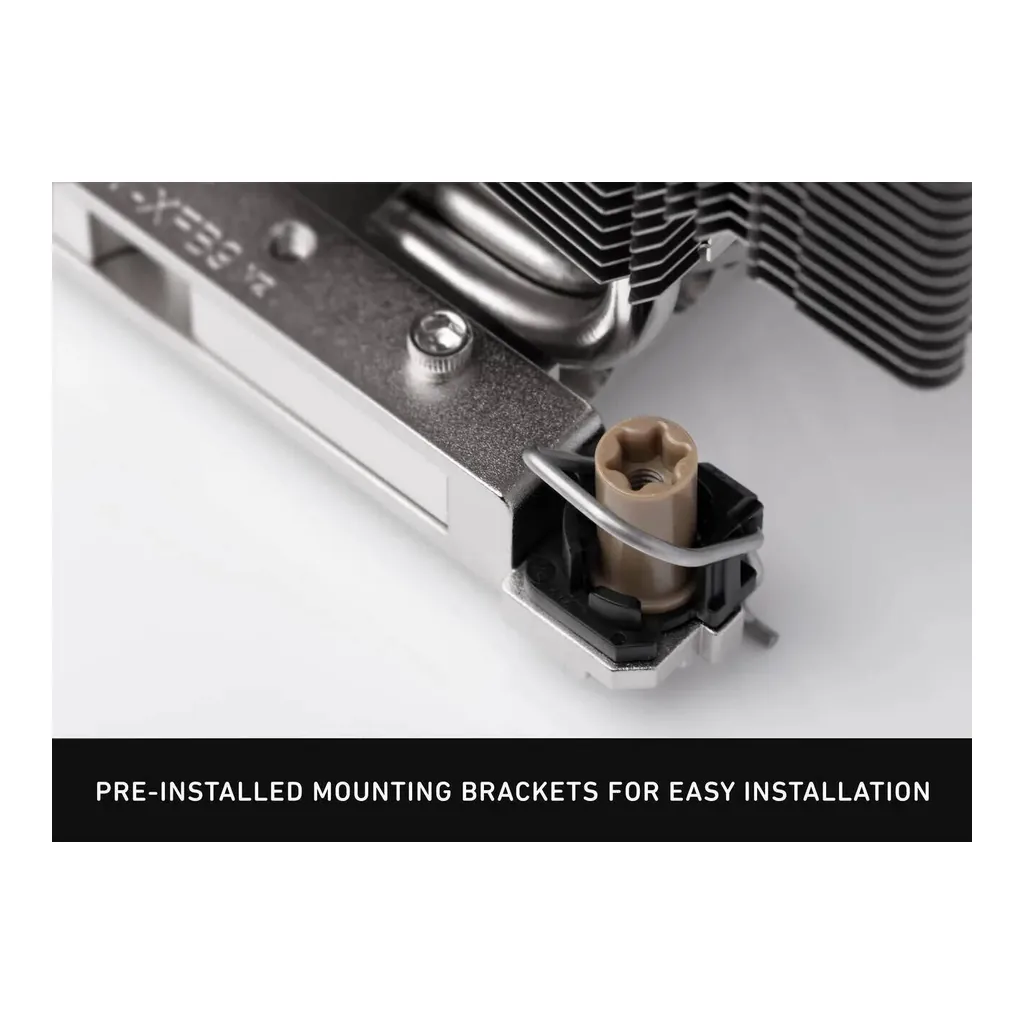

- SecuFirm2 Mounting
- 5U Rack Compatible
Technical details
| Brand | NOCTUA |
|---|---|
| Model / reference | NH-U12S DX-4677 |
| Color | Brown |
| Fan Size (Form Factor) | 120 × 120 × 25 mm (Square) |
| Fan Speed Range | 0–2000 RPM |
| Maximum Airflow | 102.1 m³/h (60.09 CFM) |
| Maximum Noise Level | 22.6 dB(A) |
| Maximum Static Pressure | 2.34 mm H₂O |
| Rated Voltage | 12 V |
| Typical Input Power | 1.2 W |
| Fan Connector | 4-pin PWM |
| Cooler Height (with fan) | 158 mm |
| Cooler Height (without fan) | 158 mm |
| Cooler Width (with fan) | 125 mm |
| Cooler Width (without fan) | 125 mm |
| Cooler Depth (with fan) | 97 mm |
| Cooler Depth (without fan) | 45 mm |
| Weight (with fan) | 1018 g |
| Weight (without fan) | 626 g |
| Heatsink Base Material | Nickel-Plated Copper |
Before ordering, check the listed socket, connector, voltage and mounting dimensions against your system.
