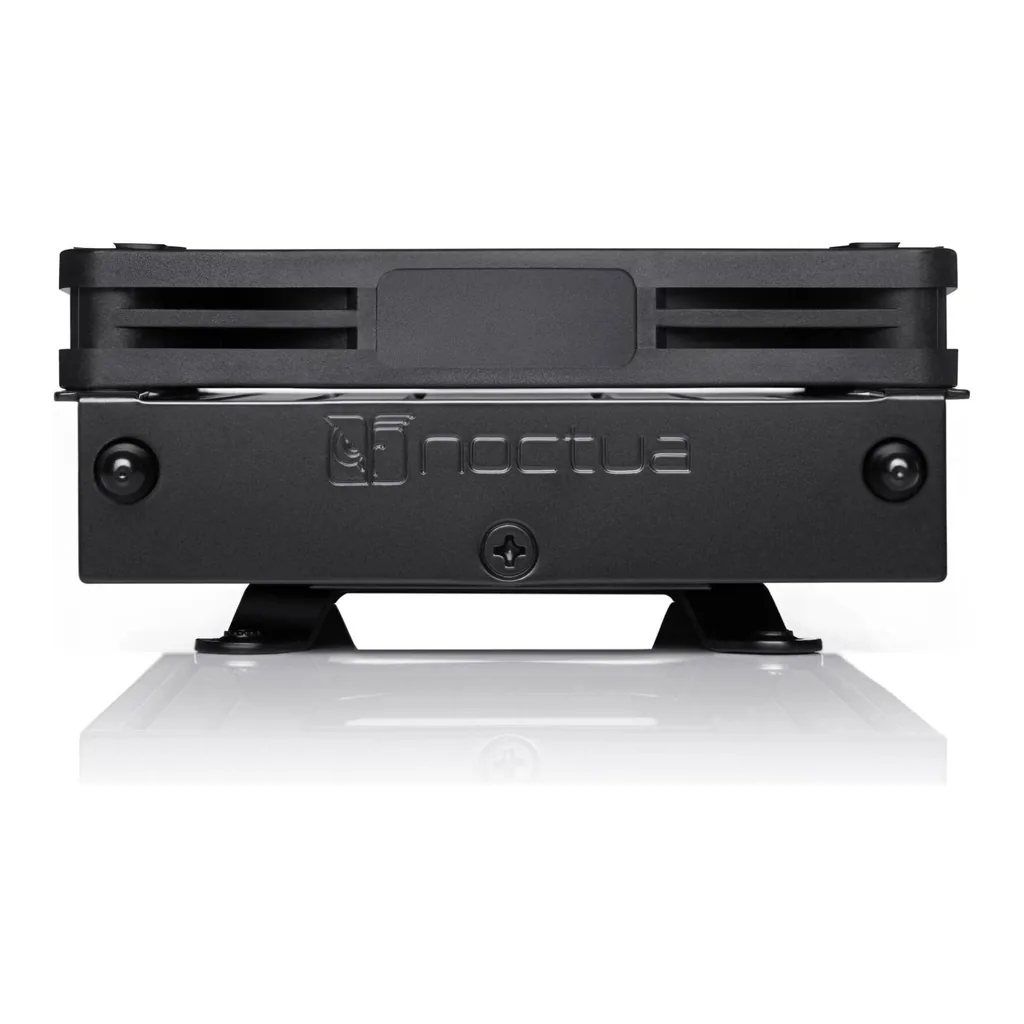

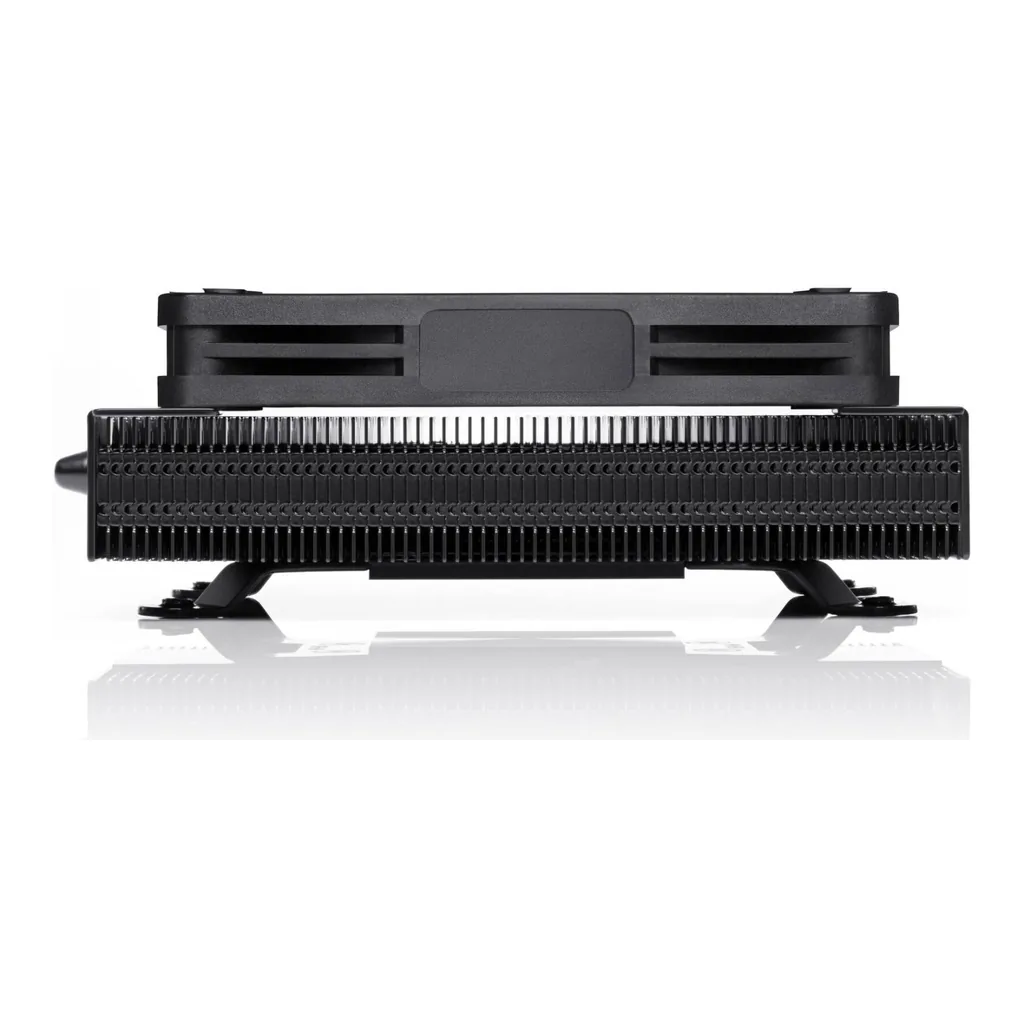

Noctua NH-L9a-AM5 CH.BK CPU Cooler, Black.
Key specifications
- NF-A9x14 HS-PWM Fan
- 2500 RPM Fan Speed
- 33.84 CFM Fan Airflow
- SecuFirm2 AM5 mounting Kit
- Copper Base Fins
- Aluminum Cooling Fins
Technical details
| Brand | NOCTUA |
|---|---|
| Model / reference | NH-L9a-AM5 CH.BK |
| Color | Black |
| Socket Compatibility | AMD AM5 |
| Height (without fan) | 23 mm |
| Width (without fan) | 114 mm |
| Depth (without fan) | 92 mm |
| Weight (without fan) | 390 g |
| Height (with fan) | 37 mm |
| Width (with fan) | 114 mm |
| Depth (with fan) | 92 mm |
| Weight (with fan) | 465 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 61 |
| Max. TDP | See NSPR |
| Fan Compatibility | 92x92x14 mm, 92x92x25 mm |
| Included Accessories | Black NH-L9a-AM5 heatsink, NF-A9x14 HS-PWM chromax.black premium fan, NA-RC7 Low-Noise Adaptor (L.N.A), NT-H1 thermal compound, Black SecuFirm2™ AM5 mounting kit, Black screws for 92x92x25 mm fans, Noctua metal case-badge |
| Model | Noctua NF-A9x14 HS-PWM chromax.black |
| Bearing | SSO2 |
| Max. Rotational Speed (+/- 10%) | 2500 RPM |
| Max. Rotational Speed with L.N.A. (+/- 10%) | 1800 RPM |
Before ordering, check the listed socket, connector, voltage and mounting dimensions against your system.
