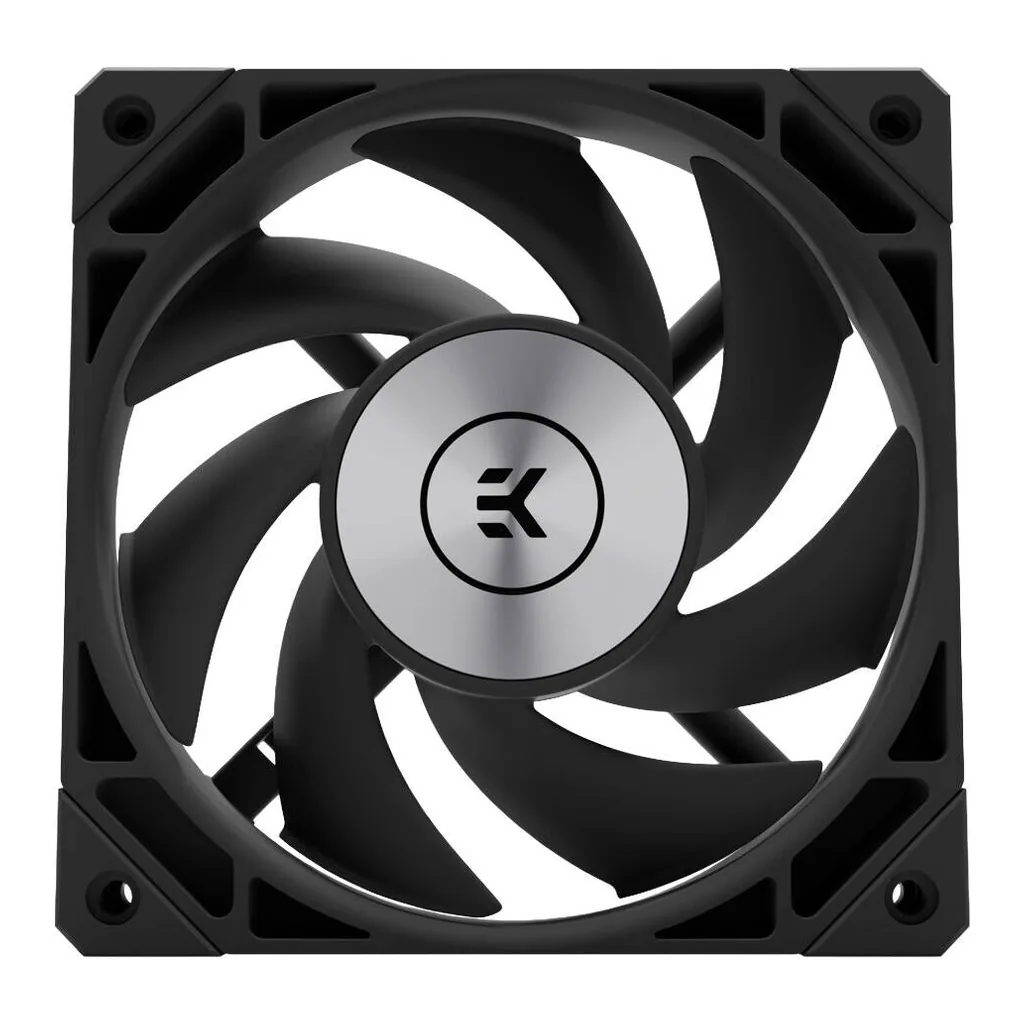

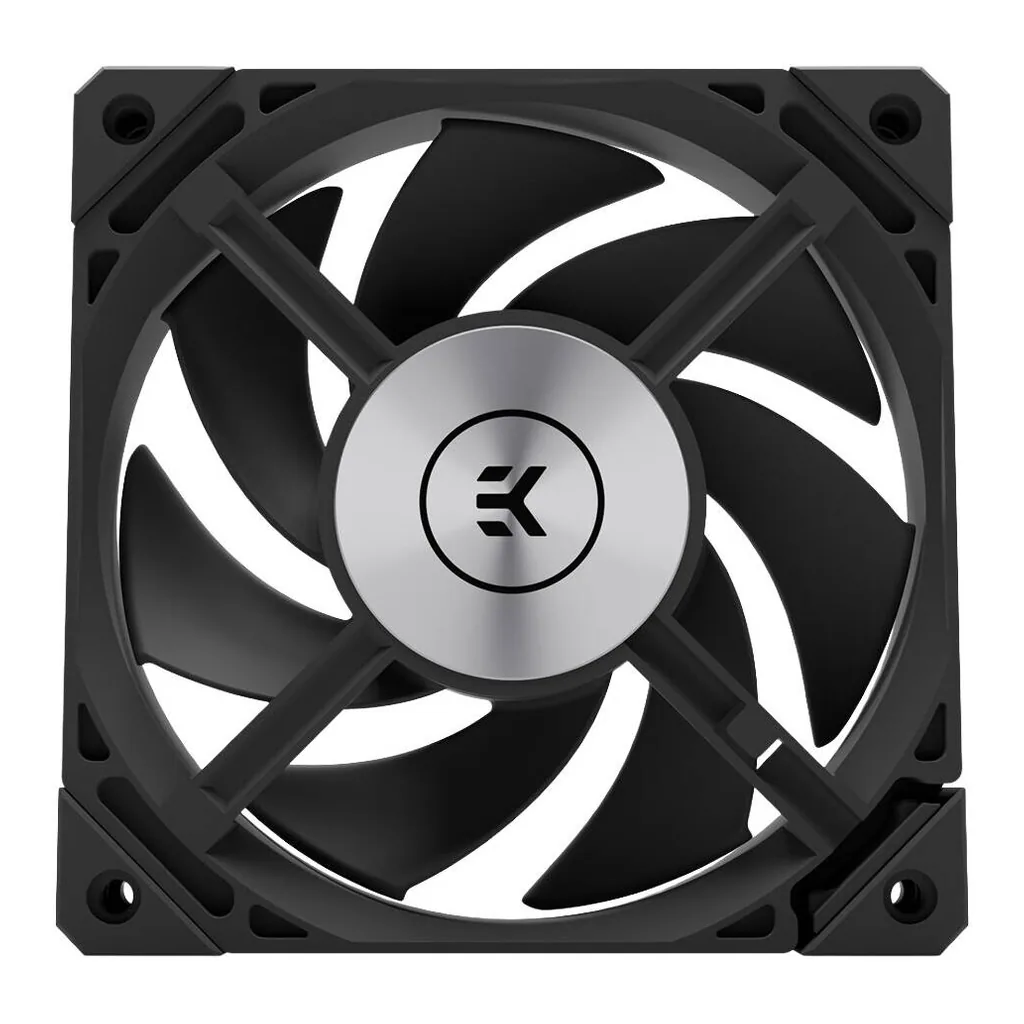

EKWB EK Quantum Phase 120 Black.
Key specifications
- 120mm PWM Cooling Fan
- 550 to 2200 RPM
- High Static Pressure Radiator Fan
- FDB Bearing
Technical details
| Brand | EK |
|---|---|
| Model / reference | 3831109854167 |
| RPM Range | 550 – 2200 RPM |
| Rated Voltage | 12V |
| Power Consumption | 2.68W |
| PWM Duty Cycle | 20–100% |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Bearing Lifespan | 70,000 hours (MTBF @ 25°C) |
| Dimensions | 120 × 120 × 27 mm |
| Fan Cable Length | 100 mm |
| Extender Cable Length | 500 mm |
| Connector | Micro-fit 8-pin |
| Max Airflow | 72.95 CFM (123.94 m³/h) |
| Static Pressure | 3.05 mmH₂O (29.91 Pa) |
| Noise Level | 33.2 dBA (Max) |
| Included Items | 1× EK-Quantum Phase 120 Fan, 1× PWM+RGB Extender Cable, 4× Screws |
Before ordering, check the listed socket, connector, voltage and mounting dimensions against your system.
