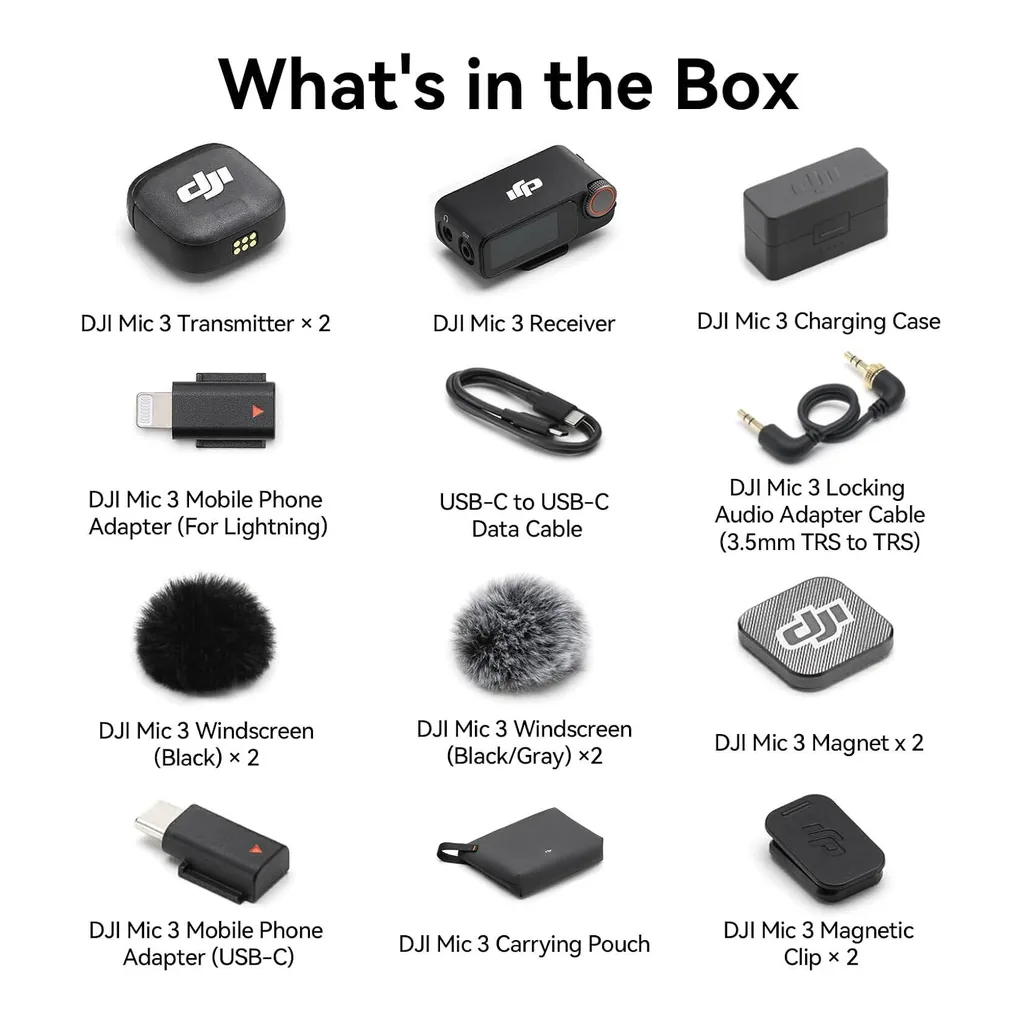

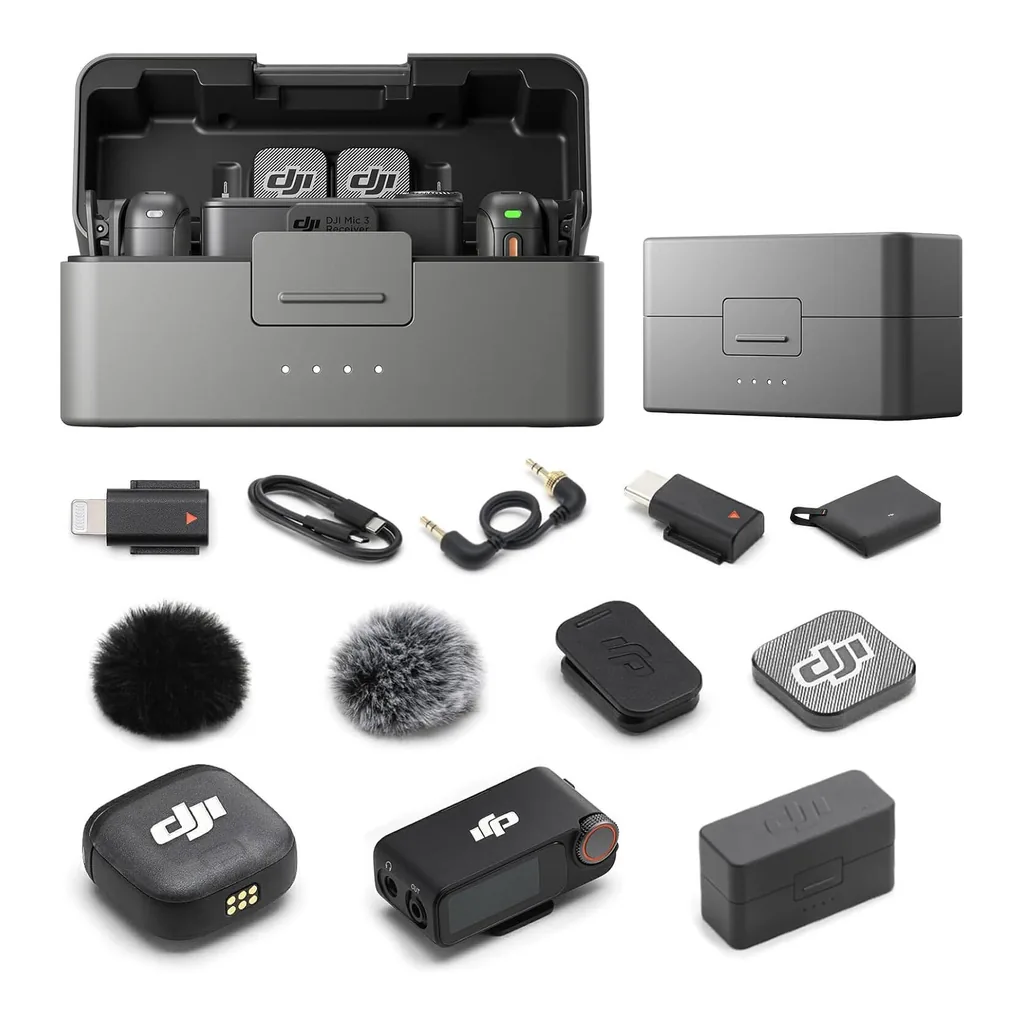

DJI Mic 3 Bundle 2 TX + 1 RX + Charging Case.
Features
- Wireless Microphone for iPhone/Android/Camera
- 32-bit Floating Internal Recording
- Dual Band Anti-Interf
Specifications
| Brand | DJI |
|---|---|
| Model | MIC 3-BUNDLE |
| Product Type | Microphone |
| Wireless Mode | Wi-Fi: 802.11 a/b/g/n/ac/ax, SDR: Customizable |
| Equivalent Isotropic Radiated Power (EIRP) | Wi-Fi:2.400–2.4835 GHz: SDR:2.400–2.4835 GHz: |
| Operating Frequency | Wi-Fi: 2.400–2.4835 GHz, 5.725–5.850 GHzSDR: 2.400–2.4835 GHz, 5.150–5.250 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz, 5.725–5.850 GHz |
| Bluetooth Protocol | Bluetooth 5.4 |
| Bluetooth Operating Frequency | 2.400–2.4835 GHz |
| Bluetooth Transmitter Power (EIRP) | BLE: |
| Battery Type | Li-ion |
| Battery Capacity | 275 mAh |
| Battery Energy | 1.065 Wh |
| Battery Voltage | 3.87 V |
| Charging Specification | Max 5 V |
| Charging Temperature | 5° to 45° C (41° to 113° F) |
| Operating Temperature | -10° to 45° C (14° to 113° F) |
| Charging Time | Approx. 50 minutes |
| Operating Time | 10 hours |
| Charging Case Model | DMC03 |
| Charging Case Dimensions | 106.30 × 42.50 × 59.20 mm (L × W × H) |
| Charging Case Weight | 164.1 g (charging case only) |
| Charging Case Battery Type | Li-ion |
| Charging Case Battery Capacity | 1950 mAh |
| Charging Case Battery Energy | 7.55 Wh |
| Charging Case Battery Voltage | 3.87 V |
| Charging Case Charging Specification | Max 5 V, 1.5–2 A |
| Charging Case Temperature | 5° to 40° C (41° to 104° F) |
| Charging Case Operating Temperature | 5° to 45° C (41° to 113° F) |
| Charging Case Time | Approx. 1.5 hours |
| Charging Cycles | Can fully charge two transmitters and one receiver approx. 2.4 times |
| Polar Pattern | Omnidirectional |
| Frequency Response | Low Cut Off: 20 Hz–20 kHz (encoded), 20 Hz–24 kHz (lossless)Low Cut On: 100 Hz–20 kHz (encoded), 100 Hz–24 kHz (lossless) |
| Microphone Sensitivity | -36 ±1 dBV@1 kHz, 94 dB SPL |
| Signal-to-Noise Ratio (SNR) | 72 dB |
| Maximum Sound Pressure Level (SPL) | 126 dB SPL @1% THD, 130 dB SPL @10% THD |
| Sampling Frequency | 48 kHz |
| Bit Depth | 32-bit float/24-bit (switchable) |
| Equivalent Noise | 22 dBA |
| Monitor Interface Output Power | Max Output: 20 mW @1 kHz, 32 Ω |
| Max Transmission Distance | 400 m (open area, interference-free)80 m (high-interference environment) |
| Timecode Supported Frame Rate | 23.98F, 24F, 25F, 29.97F, 29.97DF, 30F, 50F, 60F |
| Timecode Offset | 0.5 ppm, deviation less than 1 frame within 24 hours |
| Input | LTC |
| Input Port | 3.5 mm TRS |
| Input Voltage | ≤ +6 dBu |
| Output | LTC, Audio-TC |
| Output Port | 3.5 mm TRS, USB-C |
| Output Voltage | 0.5 Vp-p |
